country_of_origin:
TW
manufacturer:
US Motors
mpn:
H100T2B
Product Description

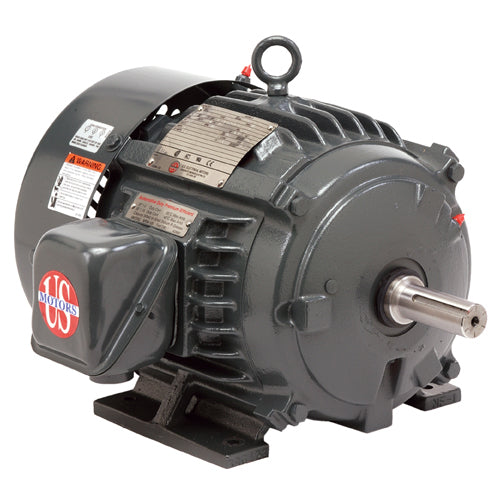

US Motors - H100T2B
Features- Definite Purpose ACCU-SERIES„¢
- TEFC TENV
- HOSTILE DUTY„¢ Inverter Duty
- 20:1 (3-60 Hz) Speed Range Constant Torque
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:TEFC
HORSEPOWER:100
KILOWATTS:74.6
POLES:4
NUMBER SPEEDS:1
RPM:1785
RPM 2:1785
HERTZ:60
VOLTS PRIMARY:230/460
VOLTS :460
VOLTS 2:230
FRME :405
SHAFT CODE:T
ASSEMBLY POSITION:F1
MOTOR TYPE:CTI
OPPOSITE END BEARING:6316-J/C3
SHAFT END BEARING:6316-J/C3
AMBIENT:40
ROTATION:DUAL
SERVICE FACTOR:1
STARTCAPMFD:N\A
SHIPPING WEIGHT:1180
BREAKDOWN TORQUE:241
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:165
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:H
KVA CODE LETTER:G
LOCKED ROTOR AMPS:731.3
NEMA NOMINAL EFFICIENCY:95.4
FULL LOAD AMPS PRIMARY:226/113
