country_of_origin:
TW
manufacturer:

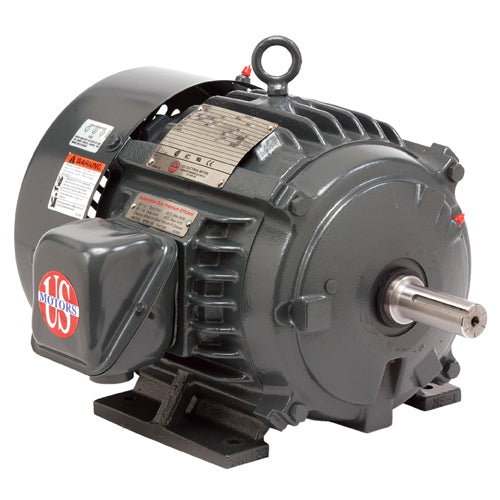

US Motors
mpn:
H20T2B
Features
- Definite Purpose ACCU-SERIES„¢
- TEFC & TENV
- HOSTILE DUTY„¢ Inverter Duty
- 20:1 (3-60 Hz) Speed Range Constant Torque
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:TEFC
HORSEPOWER:20
KILOWATTS:14.9
POLES:4
NUMBER SPEEDS:1
RPM:1780
RPM 2:1780
HERTZ:60
VOLTS PRIMARY:230/460
VOLTS :460
VOLTS 2:230
FRME :256
SHAFT CODE:T
MOUNTING:HORZ-FOOTED
ASSEMBLY POSITION:F1
MOTOR TYPE:CTI
OPPOSITE END BEARING:6309-2Z-J/C3
SHAFT END BEARING:6309-2Z-J/C3
AMBIENT:40
ROTATION:DUAL
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:370
BREAKDOWN TORQUE:330
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:355
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:H
KVA CODE LETTER:J
LOCKED ROTOR AMPS:198.9
NEMA NOMINAL EFFICIENCY:93
FULL LOAD AMPS PRIMARY:51/25.6
SERVICE FACTOR AMPS PRIMARY:57/28.7
