country_of_origin:
TW
manufacturer:
US Motors
mpn:
H20T3B
Product Description

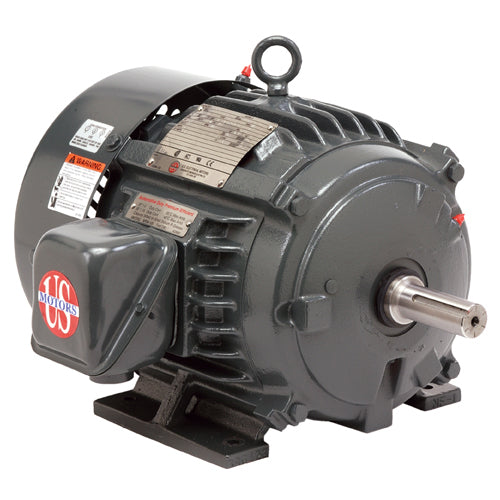

US Motors - H20T3B
Features- Definite Purpose ACCU-SERIES„¢
- TEFC TENV
- HOSTILE DUTY„¢ Inverter Duty
- 20:1 (3-60 Hz) Speed Range Constant Torque
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:TEFC
HORSEPOWER:20
KILOWATTS:14.9
POLES:6
NUMBER SPEEDS:1
RPM:1185
RPM 2:1185
HERTZ:60
VOLTS PRIMARY:230/460
VOLTS :460
VOLTS 2:230
FRME :286
SHAFT CODE:T
MOUNTING:HORZ-FOOTED
ASSEMBLY POSITION:F1
MOTOR TYPE:CTI
OPPOSITE END BEARING:6310-J/C3
SHAFT END BEARING:6310-J/C3
AMBIENT:40
ROTATION:DUAL
SERVICE FACTOR:1
STARTCAPMFD:N\A
SHIPPING WEIGHT:400
BREAKDOWN TORQUE:323
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:262
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:H
KVA CODE LETTER:H
LOCKED ROTOR AMPS:186.9
NEMA NOMINAL EFFICIENCY:91.7
FULL LOAD AMPS PRIMARY:53/26.6
