country_of_origin:
TW
manufacturer:
US Motors
mpn:
HO150P2RLG
Product Description

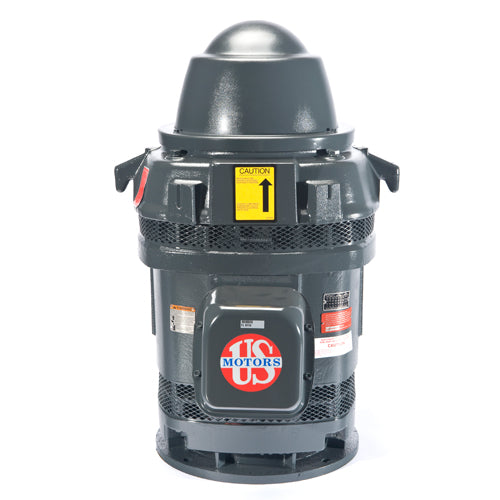

US Motors - HO150P2RLG
Features- Vertical Motors
- Three Phase Weather Protected Type I (WPI)
- HOLLOSHAFT® High Thrust
- International Duty
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:WPI
HORSEPOWER:150
KILOWATTS:111.9
POLES:4
NUMBER SPEEDS:1
RPM:1785
RPM 2:1785
RPM 3:1785
HERTZ:60
VOLTS PRIMARY:220/380-440
VOLTS :440
VOLTS 2:380
VOLTS 3:220
FRME :444
SHAFT CODE:TP
MOUNTING:VERT
ASSEMBLY POSITION:NA
MOTOR TYPE:RUS
OPPOSITE END BEARING:7322 BEM
SHAFT END BEARING:6215-J
AMBIENT:50
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:1500
BREAKDOWN TORQUE:233
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:166
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:F
KVA CODE LETTER:F
LOCKED ROTOR AMPS:1112.4
NEMA NOMINAL EFFICIENCY:95.8
FULL LOAD AMPS PRIMARY:352/204-176
SERVICE FACTOR AMPS PRIMARY:405/234-202
