Product details

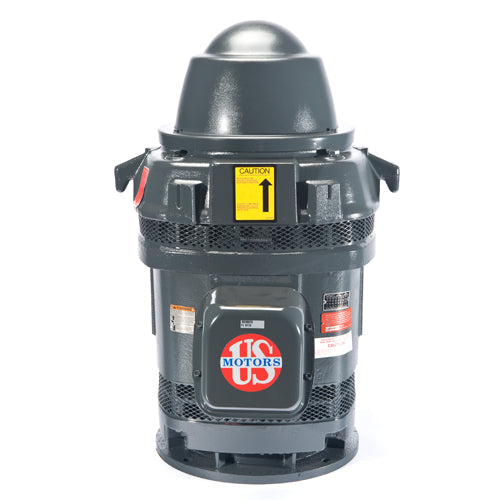

manufacturer: US Motors
mpn: HO50P1BLF
Features
- Vertical Motors
- Three Phase Weather Protected Type I (WPI)
- HOLLOSHAFT® High Thrust
- Premium Efficient
- SINEWAVE OPTIMIZED®
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:WPI
HORSEPOWER:50
KILOWATTS:37.3
POLES:2
NUMBER SPEEDS:1
RPM:3565
RPM 2:3565
HERTZ:60
VOLTS PRIMARY:230/460
VOLTS :460
VOLTS 2:230
FRME :324
SHAFT CODE:TPH
MOUNTING:VERT
ASSEMBLY POSITION:NA
MOTOR TYPE:RUS
OPPOSITE END BEARING:7220 BECBM
SHAFT END BEARING:6211-J
AMBIENT:40
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:635
BREAKDOWN TORQUE:282
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:183
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:F
KVA CODE LETTER:G
LOCKED ROTOR AMPS:362.5
NEMA NOMINAL EFFICIENCY:93
FULL LOAD AMPS PRIMARY:116/58
SERVICE FACTOR AMPS PRIMARY:133/67
