country_of_origin:
TW

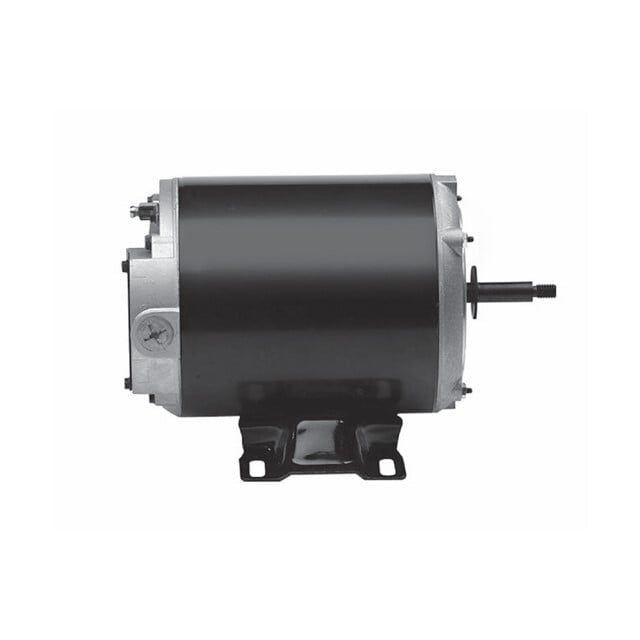

manufacturer:
US Motors
mpn:
SPH20FL1
Features
- Thru-Bolt Pool & Spa Motors
- 5.5" Frame Diameter
- Single Speed
Additional Information
PHASETYPE:1_CAPACITOR START -
MOTOR ENCLOSURE:ODP
HORSEPOWER:2
KILOWATTS:1.5
POLES:2
NUMBER SPEEDS:1
RPM:3450
HERTZ:60
VOLTS PRIMARY:230 V
VOLTS :230
FRME :48
SHAFT CODE:Y
STATOR DIAMETER:5.5
STACK:3.5
MOUNTING:THRU BOLT
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:50
ROTATION:CCW SHAFT END
SERVICE FACTOR:1
RUNCAPMFD:25
STARTCAPMFD:136.5
SHIPPING WEIGHT:28
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:105.8
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:108.7
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:F
KVA CODE LETTER:G
LOCKED ROTOR AMPS:39.23
FULL LOAD AMPS PRIMARY:8.7
