country_of_origin:
TW
manufacturer:
US Motors
mpn:
SPL15FL2S
Product Description

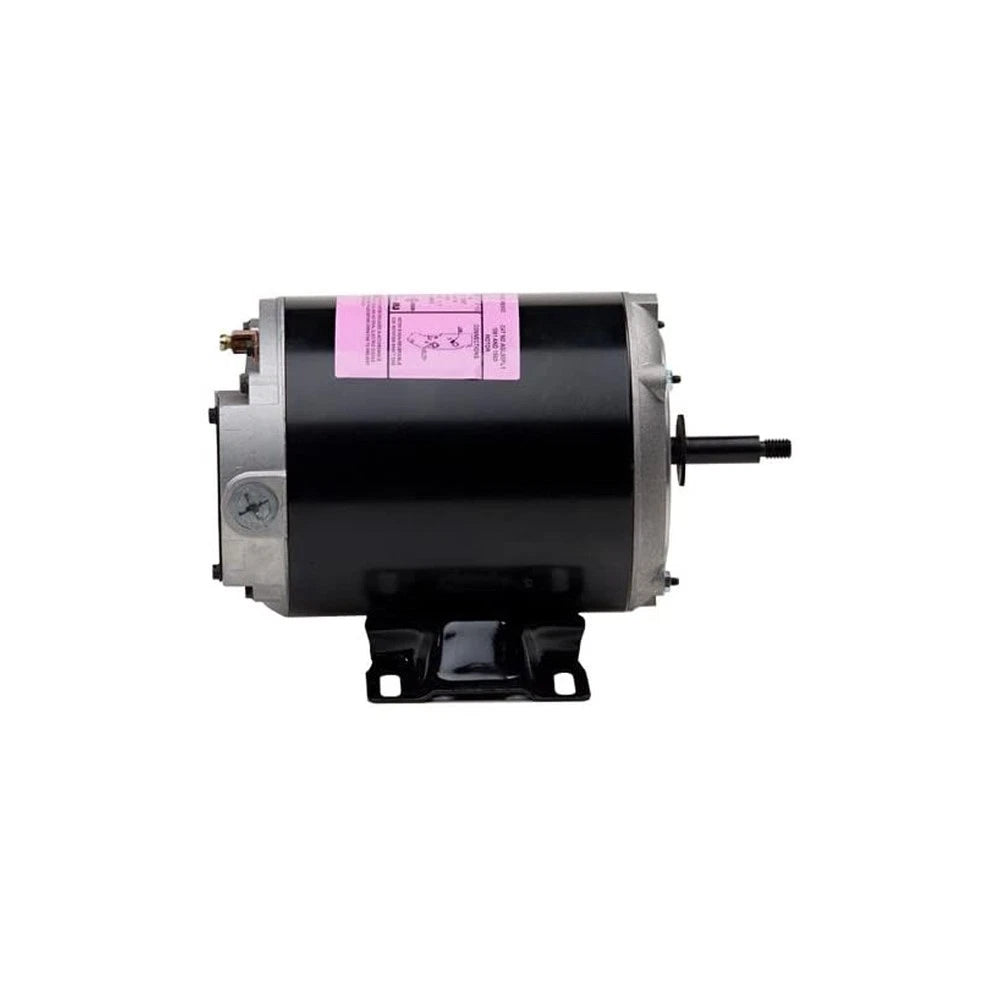

US Motors - SPL15FL2S
Features- Thru-Bolt Pool Spa Motors
- 5.5" Frame Diameter
- Two Speed Soft Start
Additional Information
PHASETYPE:1_CAPACITOR START -
MOTOR ENCLOSURE:ODP
HORSEPOWER:1.5
HORSEPOWER 2:0.188
POLES:2
POLES 2:4
NUMBER SPEEDS:2
RPM:3450
RPM 2:1725
HERTZ:60
VOLTS PRIMARY:115 V
VOLTS :115
FRME :48
SHAFT CODE:Y
STATOR DIAMETER:5.5
STACK:3.5
MOUNTING:THRU BOLT W/BASE
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:50
ROTATION:CCW SHAFT END
SERVICE FACTOR:1
RUNCAPMFD:30
RUNCAPVOLTS:370
STARTCAPMFD:244.65
SHIPPING WEIGHT:27
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:75.84
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:28.13
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:F
KVA CODE LETTER:A
LOCKED ROTOR AMPS:57.28
FULL LOAD AMPS PRIMARY:13.6/3.6
