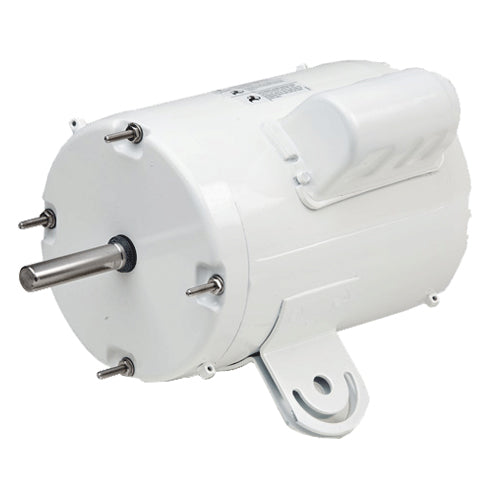

Us Motors -WD12AA2PZ7
- Permanent Split Capacitor
- Painted Washdown
- Totally Enclosed Air Over (TEAO)
- Non-Oscillating Fan Motors
- Yoke Mount
Specifications
| Model_Number | K063FEF4987015B |
|---|---|
| PRODUCT NAME | .5 HP - TEAO - 1700 |
| PHASETYPE | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE | TEAO |
| HORSEPOWER | .5 |
| KILOWATTS | 0.4 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1700 |
| HERTZ | 60 |
| VOLTS PRIMARY | 115/230 V |
| VOLTS | 115 |
| VOLTS 2 | 230 |
| FRME | 56 |
| SHAFT CODE | YZ |
| STATOR DIAMETER | 6.3 |
| STACK | 1.5 |
| MOUNTING | YOKE |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1 |
| RUNCAPMFD | 25 |
| RUNCAPVOLTS | 370 |
| SHIPPING WEIGHT | 32 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| BREAKDOWN TORQUE | 63.9 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 7.889 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | F |
| KVA CODE LETTER | G |
| LOCKED ROTOR AMPS | 24.33 |
| FULL LOAD AMPS PRIMARY | 5.9/2.9 |
| SERVICE FACTOR AMPS PRIMARY | 5.9/2.9 |
Technical Data
AvailabilityIn stock
CategoryMotors
Horsepower0.5
ManufacturerUS Motors
MpnWD12AA2PZ7
Rpm1400-1800
SubcategoryWashdown Motors
TypeWashdown Fan Motor (Yoke Mount, TEAO, PSC)
Voltage100-120
