Data Sheet Product Description
Vestil - AHA-2-12-12-VG

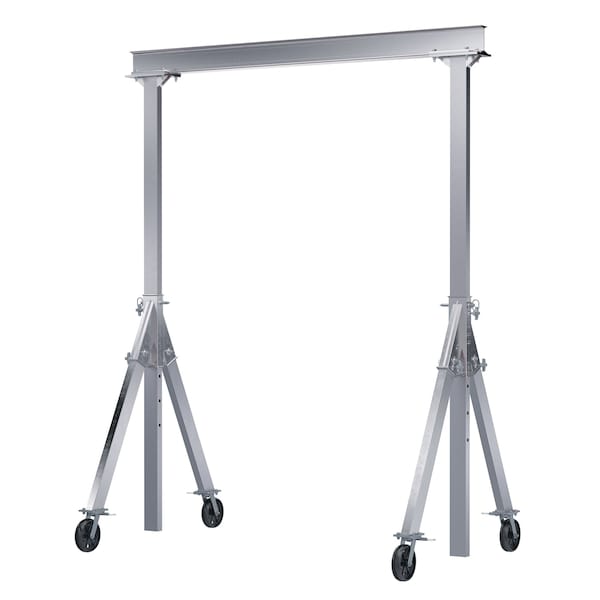

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two straps, allowing one person to transport the gantry crane in one neat package. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments.
Additional Information
Max. I Beam Height152 in.
Gantry Crane Depth144 in.
I Beam Flange Width4 in.
Wheel Width2 in.
I Beam Height8 in.
Wheel Diameter8 in.
Height Adjustment6 in.
Height152 in.
ItemAlum Gantry Crane 12'x12' Cast Iron 2K
Load Capacity2,000 lb
MaterialAluminum
StandardsCMAA and ANSI specifications
Caster MaterialCast Iron
ColorSilver
Includes(4) V-Groove Cast Iron Casters
