category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/5ffcfc5d-7eca-476c-967d-570a7f005301.pdf
manufacturer:
Vestil
mpn:
AHA-6-15-8-TLC
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

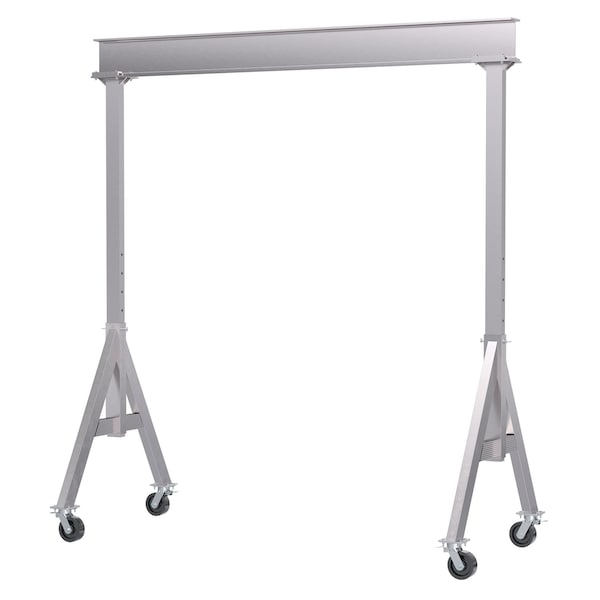

Vestil - AHA-6-15-8-TLC
The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two straps, allowing one person to transport the gantry crane in one neat package. Unit comes standard with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating.
Additional Information
Max. I Beam Height110 in.
Gantry Crane Depth180 in.
I Beam Flange Width7 in.
Height Adjustment6 in.
Wheel Width3 in.
Wheel Diameter8 in.
I Beam Height12 in.
Height108 in.
ItemAlum Gantry Crane 15'x8' Total Lock 6K
Load Capacity6,000 lb.
MaterialAluminum
ColorSilver
Caster MaterialPhenolic
Includes(4) Total locking Phenolic Casters
StandardsCMAA and ANSI specifications
