category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_HO 15.pdf
manufacturer:
Vestil
mpn:
AHLT-4848-3-43
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Tables
Data Sheet Product Description

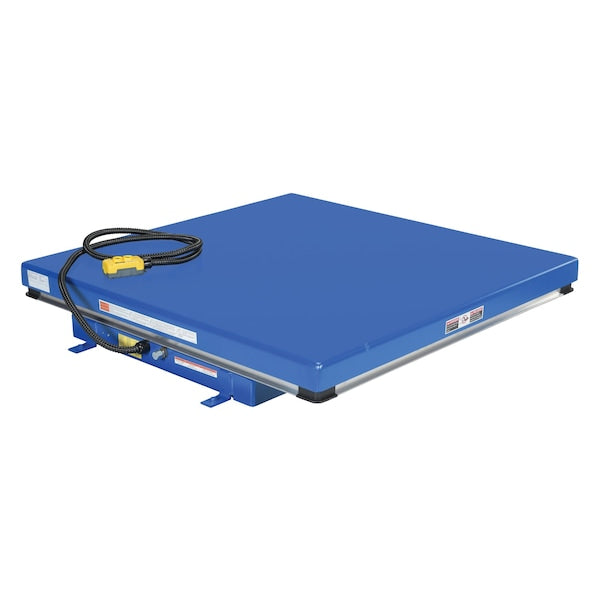

Vestil - AHLT-4848-3-43
The rotary air/Hydraulic scissor lift table utilizes the convenience of factory air to power the lift table. Simply connect to an air supply through a filter, regulator, lubricator, and you will have a lift table suitable for a wide range of applications and operating environments. It features a pneumatic upper travel limit switch, safety toe guards, cylinder with internal safety velocity fuse, two button hand control, and life-time lubricated sleeve bearings.
Additional Information
Platform Length48-3/8 in.
Height7
Platform Depth48-3/8 in.
Max. Work Height43 in.
Platform Width43-3/8 in.
Width48.375
Overall Length51 in.
Overall Width48-3/8 in.
Overall Height7 in.
Load Capacity3,000 lb.
ItemAir Hyd. Scissor Lift Table 48x48
IncludesPneumatic upper travel limit switch and safety toe guards
Power Source80 CFM & 80 PSI
Frame MaterialSteel
ColorBlue
MaterialSteel
