Data Sheet Product Description

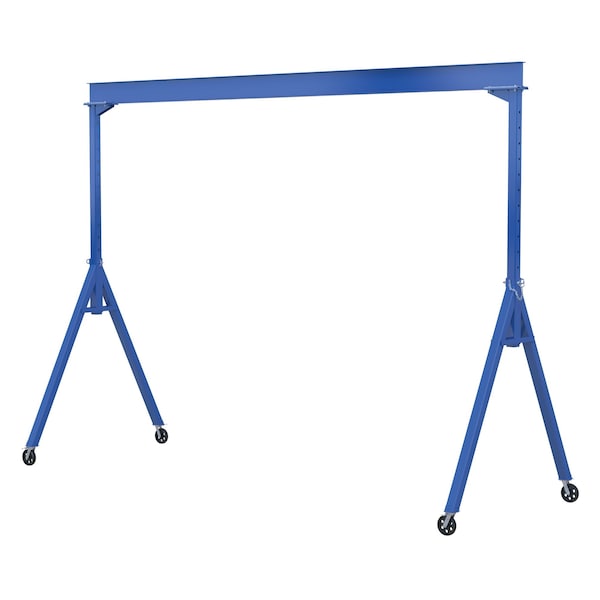

Vestil - AHS-2-15-7-VG
The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.
Additional Information
Max. I Beam Height90-3/16 in.
Gantry Crane Depth179-3/4 in.
I Beam Flange Width4 in.
I Beam Height6 in.
Wheel Diameter8 in.
Wheel Width2 in.
Height Adjustment6 in.
Height90-3/16 in.
ItemSteel Gantry Crane 15'x7' Cast Iron 2K
Load Capacity2,000 lb
MaterialSteel
FinishPainted
ColorBlue
StandardsCMAA and ANSI specifications
Caster MaterialCast Iron
Includes(4) V-Groove Cast Iron Casters
