Data Sheet Product Description

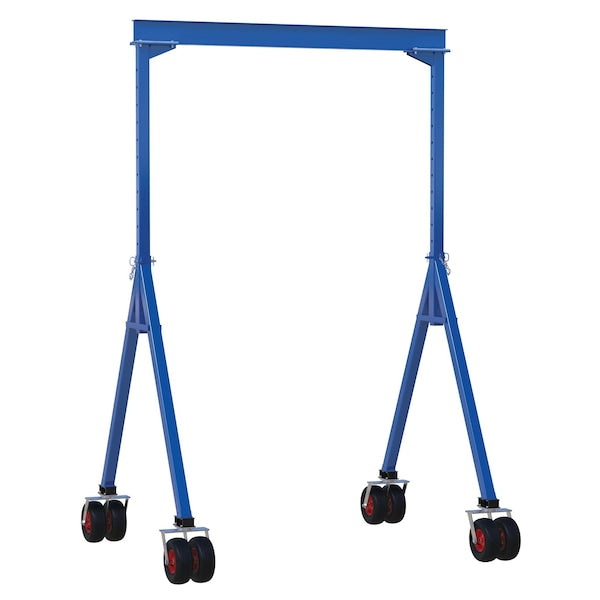

Vestil - AHS-4-10-12-PNU
The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Do not move units while loaded. A painted blue finish protects the unit from. Designed for semi-permanent or permanent applications.
- • Incremental height adjustment
- • Pinned connections for quick set up and take down
- • Easily adjustable height with fork truck or other overhead lifting device
- • Smooth rolling with four swivel pneumatic casters
Additional Information
Gantry Crane Depth130-3/4 in
I Beam Flange Width4 in
Wheel Diameter16 in
I Beam Height97-1/2 in
Load Capacity4000 lb
MaterialSteel
Caster MaterialRubber
ColorBlue
Adjustable Increments6 in
IncludesGantry Crane and (4) Casters
Caster TypeSwivel
FinishPainted
