category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/ac028614-536a-43fb-90a6-5512d8e52bd0.pdf
manufacturer:
Vestil
mpn:
AHS-4-15-7-TLC
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

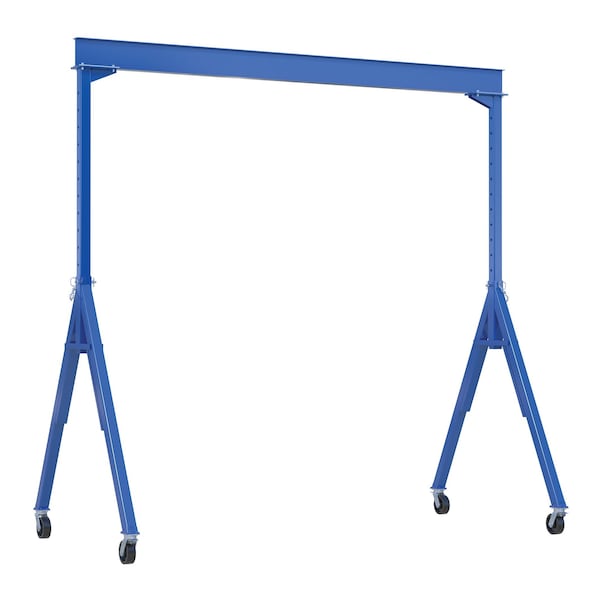

Vestil - AHS-4-15-7-TLC
The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.
Additional Information
Max. I Beam Height92-1/4 in.
Gantry Crane Depth179-3/4 in.
I Beam Flange Width4 in.
Wheel Width2 in.
Wheel Diameter8 in.
I Beam Height8-1/8 in.
Height Adjustment6 in.
Height92-1/4 in.
ItemSteel Gantry Crane 15'x7' Total Lock 4K
Load Capacity4,000 lb
MaterialSteel
StandardsCMAA and ANSI specifications
FinishPainted
Includes(4) Total locking Phenolic Casters
Caster MaterialPhenolic
ColorBlue
