category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/ac028614-536a-43fb-90a6-5512d8e52bd0.pdf
manufacturer:
Vestil
mpn:
AHS-4-20-16-PNU
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description
Vestil - AHS-4-20-16-PNU

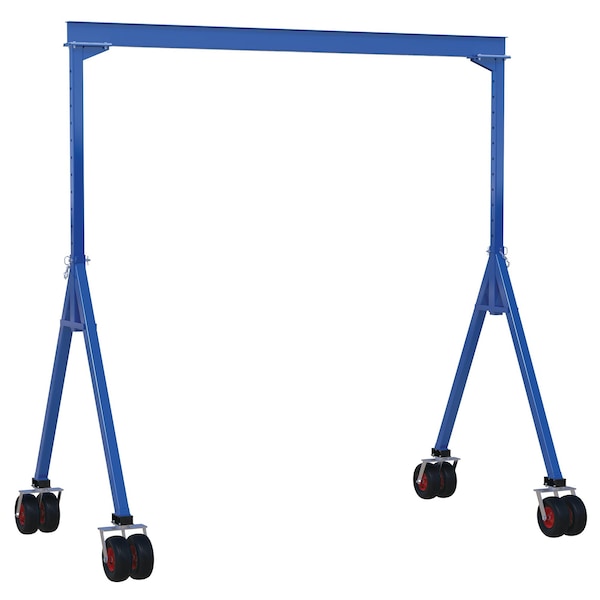

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Do not move units while loaded. A painted blue finish protects the unit from rust. Designed for semi-permanent or permanent applications.
- • Incremental height adjustment
- • Pinned connections for quick set up and take down
- • Easily adjustable height with fork truck or other overhead lifting device
- • Smooth rolling with four swivel pneumatic casters
Additional Information
Gantry Crane Depth250-3/4 in
I Beam Flange Width4 in
Wheel Diameter16 in
I Beam Height146-1/4 in
Load Capacity4000 lb
MaterialSteel
ColorBlue
IncludesGantry Crane and (4) Casters
Adjustable Increments6 in
Caster MaterialRubber
Caster TypeSwivel
FinishPainted
