category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_AHSxxxxMANUALxxa062eb.pdf
manufacturer:
Vestil
mpn:
AHS-4-20-16
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

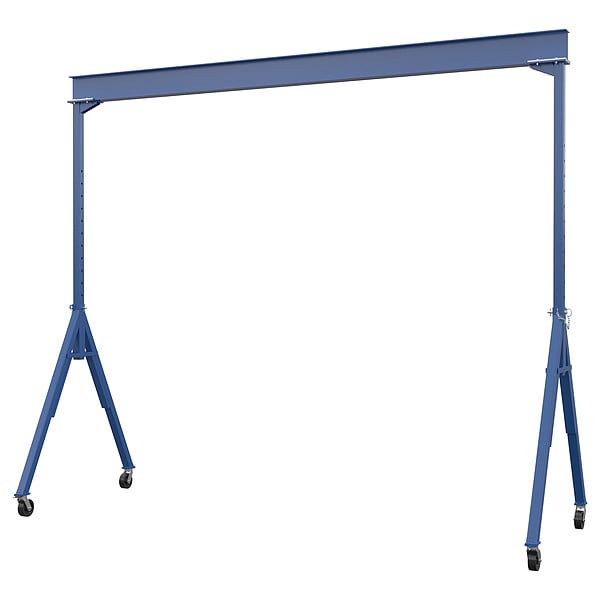

Vestil - AHS-4-20-16
Adjustable Gantry Crane, Body Material Steel, Maximum Lifting Capacity 4,000 lb, I-Beam Flange Width 4 in, I-Beam Height 12.2 in, Height Adjustability Adjustable Height, Minimum Overall Height 12.2 in, Maximum Overall Height 16.1 ft, Minimum Height Under Beam 10.6 ft, Maximum Height Under Beam 15.1 ft, Minimum Overall Span 20 ft, Maximum Overall Span 17.5 ft, Minimum Clear Span Not Applicable, Maximum Clear Span 17.5 ft, Mobility Under Load Stationary, Rotating Legs No
Additional Information
I Beam Flange Width4 in
I Beam Height12.1875 in
Wheel Diameter8 in
Wheel Width2 in
Overall Width7.4 ft
Maximum Height Under Beam15.1 ft
I-Beam Height12.2 in
Mfr. Warranty Length1 yr
Maximum Overall Height16.1 ft
Height AdjustabilityAdjustable Height
Minimum Overall Height12.2 in
Minimum Height Under Beam10.6 ft
Height Adjustment Increments6 in
Overall Depth239.8 in
I-Beam Flange Width4 in
Item Steel Gantry Crane - Adjustable Height
Load Capacity 4000
Material Steel
Finish Painted
Caster Type (4) Swivel Locking
Standards ANSI, CMAA
Adjustable Increments 6 in
Color Blue
Body Material Steel
Mobility Under Load Stationary
Span Adjustability Fixed Span
Minimum Overall Span 20 ft
Leg Connection Type Bolt On
Maximum Clear Span 17.5 ft
Maximum Lifting Capacity 4,000 lb
Rotating Legs No
Mobility Casters
Wheel Material Glass-Filled Nylon
Maximum Overall Span 17.5 ft
