category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/ac028614-536a-43fb-90a6-5512d8e52bd0.pdf
manufacturer:
Vestil
mpn:
AHS-6-15-12-TLC
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

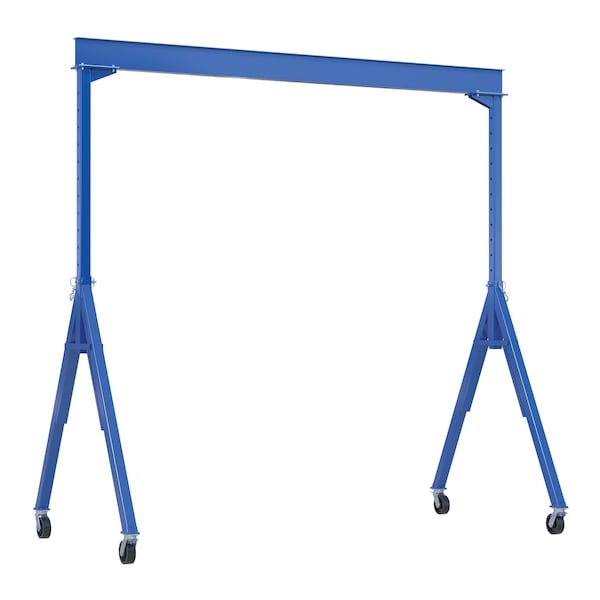

Vestil - AHS-6-15-12-TLC
The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.
Additional Information
Max. I Beam Height155 in.
Gantry Crane Depth179-3/4 in.
I Beam Flange Width4 in.
Height Adjustment6 in.
Wheel Width3 in.
I Beam Height10-1/8 in.
Wheel Diameter8 in.
Height155 in.
ItemSteel Gantry Crane 15'x12' Total Lock 6K
Load Capacity6,000 lb.
MaterialSteel
FinishPainted
Caster MaterialPhenolic
StandardsCMAA and ANSI specifications
ColorBlue
Includes(4) Total locking Glass Filled Nylon Casters
