category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/ac028614-536a-43fb-90a6-5512d8e52bd0.pdf
manufacturer:
Vestil
mpn:
AHS-6-20-16-TLC
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

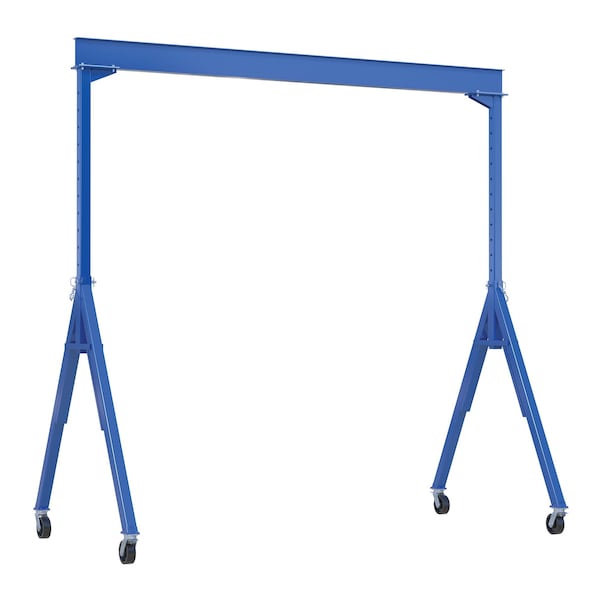

Vestil - AHS-6-20-16-TLC
The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Facilitate easy mobility from one area to another with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit from . Designed for semi-permanent or permanent applications.
Additional Information
Max. I Beam Height205-3/8 in.
Gantry Crane Depth239-3/4 in.
I Beam Flange Width6-1/2 in.
Wheel Width3 in.
I Beam Height12-5/16 in.
Wheel Diameter8 in.
Height Adjustment6 in.
Height205-3/8 in.
ItemSteel Gantry Crane 20'x16' Total Lock 6K
Load Capacity6,000 lb.
MaterialSteel
Includes(4) Total locking Glass Filled Nylon Casters
Caster MaterialPhenolic
StandardsCMAA and ANSI specifications
FinishPainted
ColorBlue
