category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/ac028614-536a-43fb-90a6-5512d8e52bd0.pdf
manufacturer:
Vestil
mpn:
AHS-8-15-10-VG
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

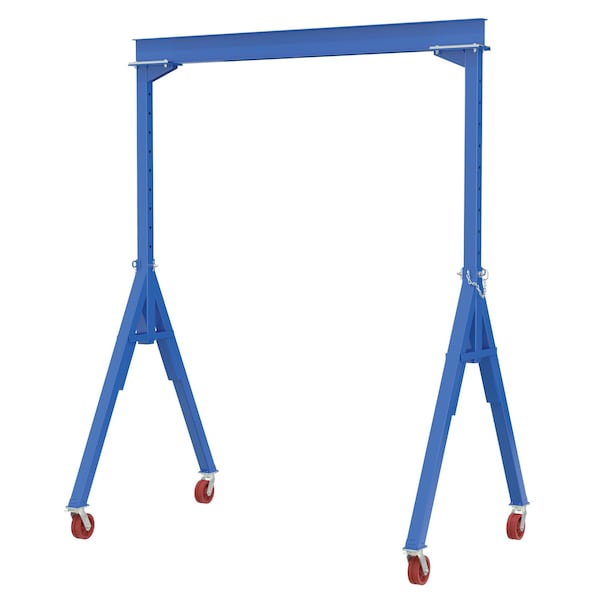

Vestil - AHS-8-15-10-VG
The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit from . Designed for semi-permanent or permanent applications.
Additional Information
Max. I Beam Height131-5/16 in.
Gantry Crane Depth179-3/4 in.
I Beam Flange Width4 in.
Wheel Width3 in.
I Beam Height10-1/8 in.
Height Adjustment6 in.
Wheel Diameter8 in.
Height131-5/16 in.
ItemSteel Gantry Crane 15'x10' Cast Iron 8K
Load Capacity8,000 lb.
MaterialSteel
Caster MaterialCast Iron
FinishPainted
ColorBlue
StandardsCMAA and ANSI specifications
Includes(4) V-Groove Cast Iron Casters
