category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/df5a969f-c725-4c13-bdbe-0c4852873947.pdf
manufacturer:
Vestil
mpn:
AHSN-4-10-14-TLC
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

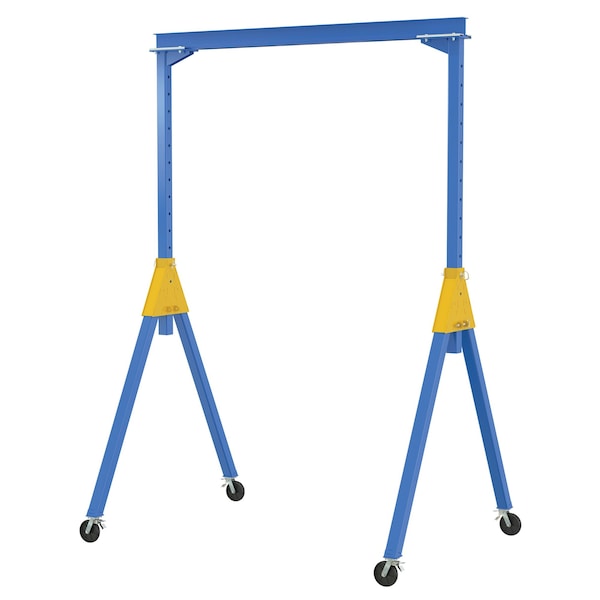

Vestil - AHSN-4-10-14-TLC
The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit from . Designed for semi-permanent or permanent applications.
Additional Information
Max. I Beam Height175-9/16 in.
Gantry Crane Depth119-3/4 in.
I Beam Flange Width4 in.
Wheel Width2 in.
I Beam Height8-1/8 in.
Height Adjustment6 in.
Wheel Diameter8 in.
Height175-9/16 in.
ItemKD Gantry Crane 10'x14' Total Lock 4K
Load Capacity4,000 lb
MaterialSteel
FinishPainted
Caster MaterialGlass-Filled Nylon
Includes(4) Total locking Glass Filled Nylon Casters
ColorBlue
StandardsCMAA and ANSI specifications
