category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_AHSNxx6xx10xx16xxd8534f.pdf
manufacturer:
Vestil
mpn:
AHSN-6-10-14-VG
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

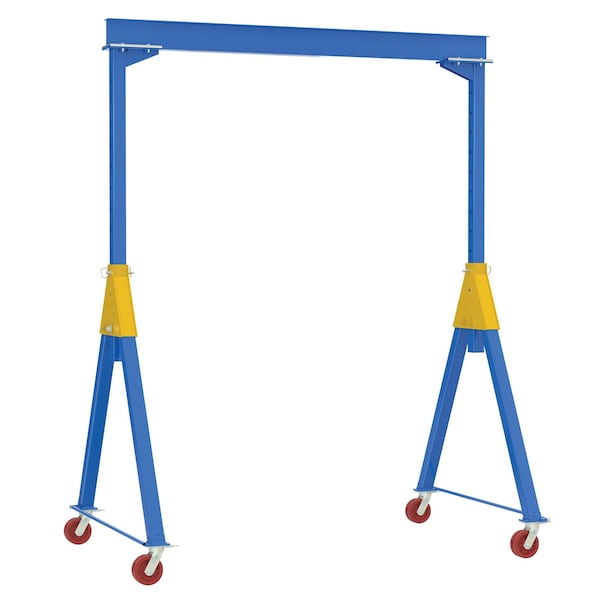

Vestil - AHSN-6-10-14-VG
The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit from . Designed for semi-permanent or permanent applications.
Additional Information
Max. I Beam Height177-1/16 in.
Gantry Crane Depth119-3/4 in.
I Beam Flange Width4 in.
Wheel Diameter8 in.
I Beam Height8-1/8 in.
Height Adjustment6 in.
Wheel Width3 in.
Height177-1/16 in.
ItemKD Gantry Crane 10'x14' Cast Iron 6K
Load Capacity6,000 lb.
MaterialSteel
Includes(4) V-Groove Cast Iron Casters
FinishPainted
StandardsCMAA and ANSI specifications
Caster MaterialCast Iron
ColorBlue
