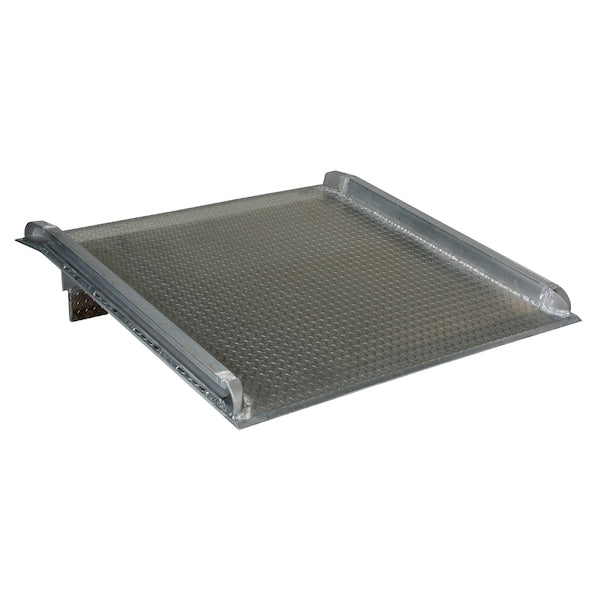

Vestil BTA-15006048 60" x 48" Aluminum Truck Dockboard, 15000 lb Capacity

Vestil BTA-15006048 60" x 48" Aluminum Truck Dockboard, 15000 lb Capacity

Dropship

Get it by Wed, Feb 18 - Mon, Feb 23

SKU kpi214-BTA-15006048

$1,785.93 USD
$1,785.93 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Material Handling
country_of_origin: USA
data_sheet: https://www.zoro.com/static/cms/enhanced_pdf/b0b1caa5-1b73-4686-9a99-6eeca8529ba3.PDF
manufacturer: Vestil
mpn: BTA-15006048
subcategory: Dock & Warehouse Equipment
type: Ramps

Product Description

Vestil - BTA-15006048

The Aluminum truck dock board is engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dock board to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dock board with capacity at least four-times the lifting capacity of fork truck. The width of the dock board should be at least 15 (in.) wider than the load or equipment passing between the curbs. Bend is 11 degrees and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Additional Information

Overall Length48 in.
Overall Height11-5/8 in.
Overall Width60 in.
Overall Depth48 in.
Usable Width53-3/4 in.
Height11.625
Thickness1/2 in.
Size48 x 60 x 11.625
Width60
Depth48
Length48
Dock Shelter ItemAluminum Truck Dockboards (Welded Aluminum Curbs)
Item60x48 Alum. Truck Dockboard 15k
Load Capacity15,000 lb.
MaterialAluminum
IncludesWelded Alumin.um Lockin.g Legs
ColorSilver
StandardsOSHA : 1910.30 (a); ANSI : MH 30.2
Weight177
