category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_CARTxx23xxxxxx24xxxxMANUALxx5653ff.pdf
manufacturer:
Vestil
mpn:
CART-24-15-DC
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Tables
Data Sheet Product Description

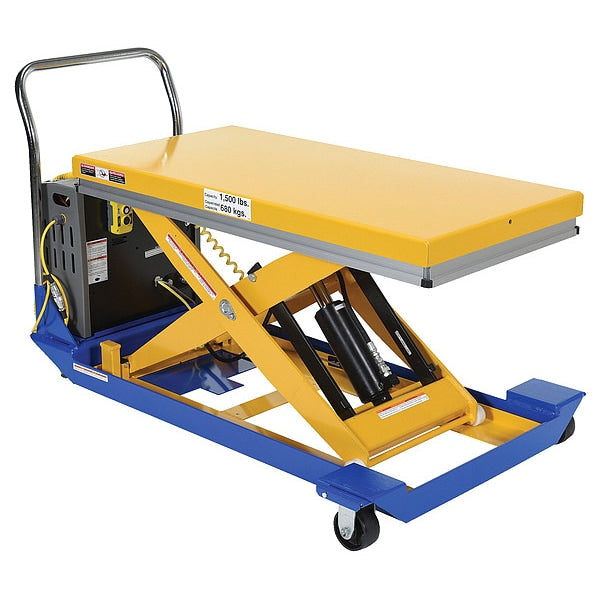

Vestil - CART-24-15-DC
Powered, Lift Mechanism Motor, Lift Control Push Button, Load Capacity 1,500 lb, Platform Material Steel, Platform Length 48 in, Platform Width 24 in, Overall Length 59 in, Overall Width 36 in, Overall Height 36 in, Minimum Lifting Height 9 in, Maximum Lifting Height 42 1/2 in, Scissor Type Single, Wheel Configuration (2) Swivel with Brake, (2) Rigid, Brake Type Face Contact Brake, Platform LxW 48 in x 24 in
Additional Information
Lifting Height Max.42 1/2 in
Lifting Height Min.9 in
Platform Length48 in
Caster Dia.5"
Caster Wheel Dia.4 in
Platform Width24 in
Overall Length59 in
Overall Height36 in
Overall Width36 in
Handle Height36 in
Overall LxWxH59 in x 36 in x 36 in
Maximum Lifting Height42 1/2 in
Wheel Diameter4 in
Minimum Lifting Height9 in
Platform LxW48 in x 24 in
Lift Table Item Scissor Lift Table
Mobile/Stationary Mobile
Lift Mechanism Motor
Lift Mobility Electric Lift, Manual Push
Lift Control Push Button
Lift Table Platform Style Fixed
Load Capacity 1,500 lb
Lift Voltage 12V DC
Caster Material Phenolic
Caster Wheel Type (2) Rigid, (2) Swivel with Lock
Item Powered-Lift/Manual-Push Mobile Scissor-Lift Table
Includes Battery Charger, Push Button, Key-Operated ON/OFF Control
Up Speed Seconds 17 sec
Frame Material Steel
Caster Type (2) Rigid, (2) Swivel with Lock
Number of Posts 0
Operation Powered
Wheel Type Tread on Core
Brake Type Face Contact Brake
Platform Type Solid
Wheel/Tread Material Phenolic
Wheel Configuration (2) Swivel with Brake, (2) Rigid
Handle Type Raised
Charger Type On-Board
Battery Voltage DC
Platform Material Steel
