Data Sheet Product Description

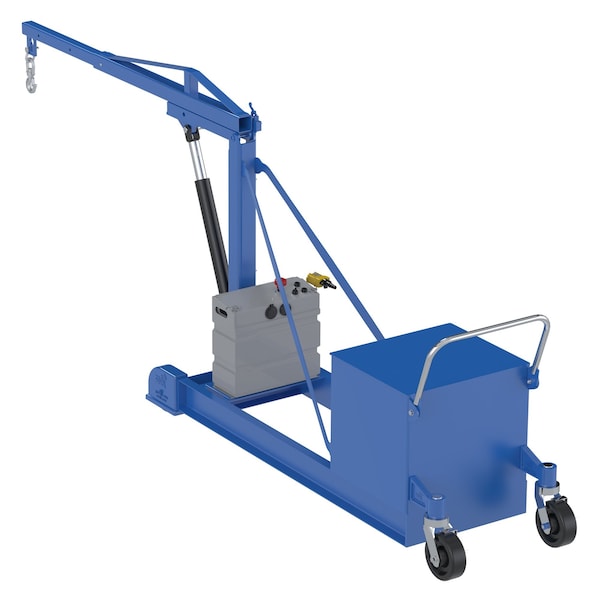

Vestil - CBFC-2000-DC
This crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a push of a button on DC powered units. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two 2 rigid 8'' x 2'' glass-filled nylon and two 2 swivel 8'' x 3'' phenolic caster with side brake. Counterbalance included. Welded steel construction.
- • DC powered for use in multiple areas
- • Maneuverable for precise positioning
- • Casters for smooth transference
- • Counterbalanced for all around stability
Additional Information
Height (In.)159-1/8 in
Length (In.)107-1/2 in
Width (In.)29 in
Base Size (In.)94 in L x 29 in W
Boom Length (In.)53-1/2 in to 77-1/2 in
Rigid Caster Diameter8 in
Rigid Caster Width2 in
Swivel Caster Width3 in
Swivel Caster Diameter8 in
Capacity (Lb.)2000 lb
DesignCounter Balance
MaterialSteel
IncludesCasters
FinishSmooth
FunctionFloor Crane
Voltage12V DC
FeaturesDC powered for use in multiple areas. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Maximum adjustment and versatility to lift a variety of loads
Swivel Caster Quantity2
Swivel Caster MaterialPhenolic
ColorBlue
Rigid Caster Quantity2
Raised Arm Fully Extended96 in
Rigid Caster MaterialGlass-Filled Nylon
Lowered Arm Fully Extended15 in
