Data Sheet Product Description

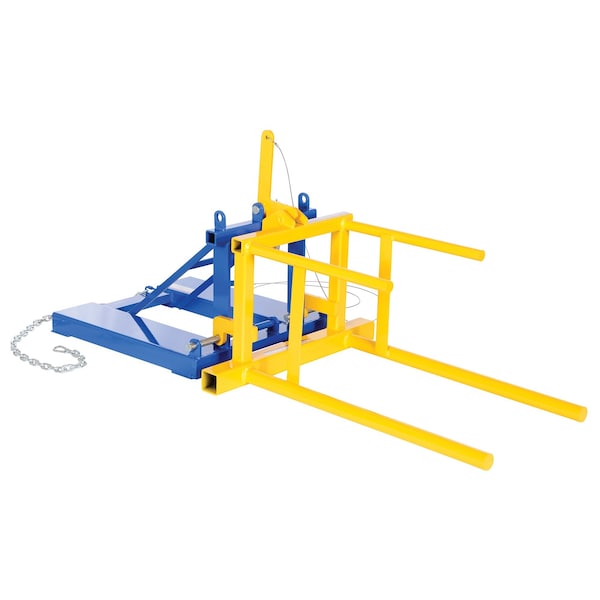

Vestil - DRUM-P-30
The drum positioner allows fork truck driver to rotate standing drums to the horizontal racking position and vice-versa. Positive latching system ensures safe handling of drums. Slide the positioned extensions over the vertical drum. With the aid of the drum positioned, rotate drum to horizontal position. Latching system will engage to allow horizontal positioning of drum. It’s now ready to slide into the rack. Mechanical operation relies on fork truck to rotate and lift drums. The drum positioned features a welded spacer to protect drum fixtures from damage when rotating.
Additional Information
Overall Height32-3/8 in.
Overall Length74-3/4 in.
Overall Width32-1/2 in.
Platform Length74.75"
Usable Fork Pocket Width7-1/2 in.
Length75 in
Usable Fork Pocket Height2-1/2 in.
Height33 in
Width32.5
Size74-3/4" x 32-1/2" x 32-3/8"
Depth74-3/4 in.
MaterialHeavy-duty Welded Steel
ColorBlue / Yellow
Load Capacity800 lb.
Item30 Gallon Drum Positioner
AssembledYes
IncludesSafety Chain Included
For Use WithFork Truck
FeaturesAccepts 30 gallon drums; 20.5" fork pocket centers; Features a welded spacer to protect drum fixtures from damage when rotating; Constructed of heavy-duty steel for greater strength
Drum Capacity30 gal
Weight273
For Drum MaterialSteel & Plastic
Power SourceFork Truck
ApplicationThe drum positioner allows fork truck driver to rotate standing drums to the horizontal racking position and vice-versa.
