category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_EHxx6042xx29d058.pdf
manufacturer:
Vestil
mpn:
EH-6042
subcategory:
Dock & Warehouse Equipment
type:
Ramps
Data Sheet Product Description

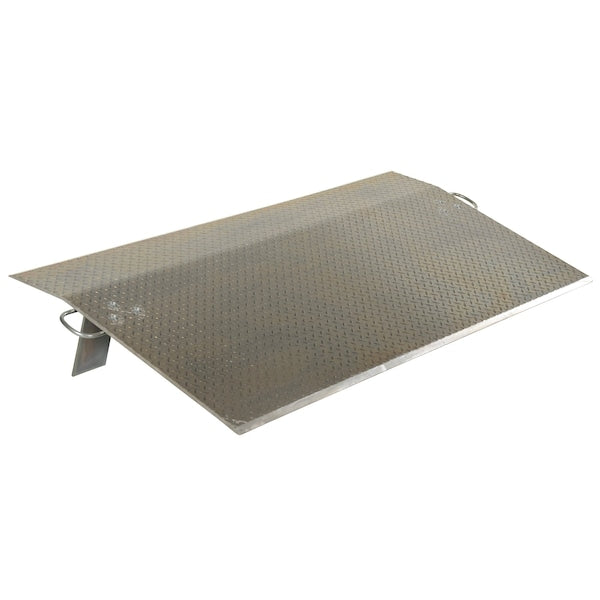

Vestil - EH-6042
The aluminum economizer dock plate is an economical way to speed up truck loading and unloading. The unit spans the opening between dock and trailer to allow pallet or hand trucks along with traffic to safely move in and out of the trailer. The dock plate is constructed of high strength, non-skid aluminum alloy tread plate. The lightweight design with bolt on zinc plated legs and handles on each side makes portability easy. Locking legs for OSHA compliance. Not for use with fork trucks.
Additional Information
Overall Length42 in.
Overall Height9-1/2 in.
Overall Width66 in.
Size42 x 66 x 9.5
Length42
Depth42
Usable Width60 in.
Overall Depth42 in.
Width66
Thickness1/2 in.
Height9.5
Item60x42 1/2" Alum. Dock Plate 5.5k
Dock Shelter ItemAluminum Economizer Dockplates
Load Capacity5,500 lb.
MaterialAluminum
IncludesZin.c-plated lockin.g legs and liftin.g handles
StandardsOSHA : 1910.30 (a); ANSI : MH 30.2
Weight127
ColorSilver
