category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_EHxx7230xxa87b17.pdf
manufacturer:
Vestil
mpn:
EH-7230
subcategory:
Dock & Warehouse Equipment
type:
Ramps
Data Sheet Product Description
Vestil - EH-7230

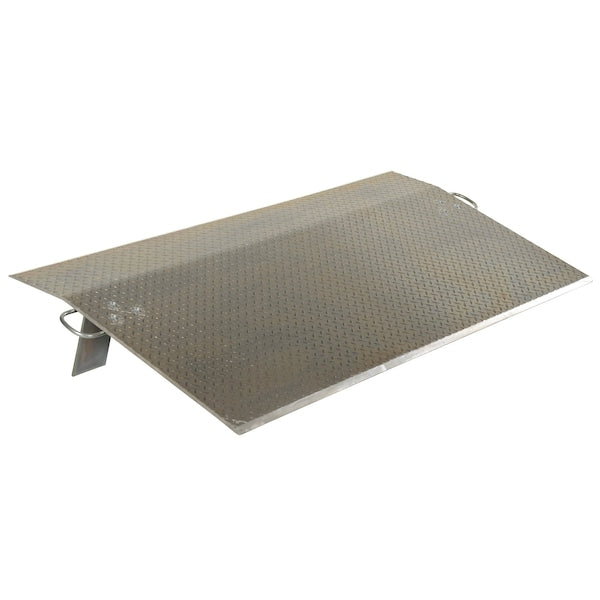

The aluminum economizer dock plate is an economical way to speed up truck loading and unloading. The unit spans the opening between dock and trailer to allow pallet or hand trucks along with traffic to safely move in and out of the trailer. This dock plate is constructed of high strength, non-skid aluminum alloy tread plate. The lightweight design with bolt on zinc plated legs and handles on each side makes portability easy. Locking legs for OSHA compliance. Not for use with fork trucks.
Additional Information
Overall Length30 in.
Overall Height6-1/2 in.
Overall Width78 in.
Overall Depth30 in.
Length30
Depth30
Size30 x 78 x 6.5
Thickness1/2 in.
Height6.5
Width78
Usable Width72 in.
Item72x30 1/2" Alum. Dock Plate 9.5k
Dock Shelter ItemAluminum Economizer Dockplates
Load Capacity9,500 lb.
MaterialAluminum
IncludesZin.c-plated lockin.g legs and liftin.g handles
StandardsOSHA : 1910.30 (a); ANSI : MH 30.2
Weight106
ColorSilver
