category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_EHLTxxExx2448xx2xx41xx4ac8a7.pdf
manufacturer:
Vestil
mpn:
EHLT-E-2448-2-41
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Tables
Data Sheet Product Description

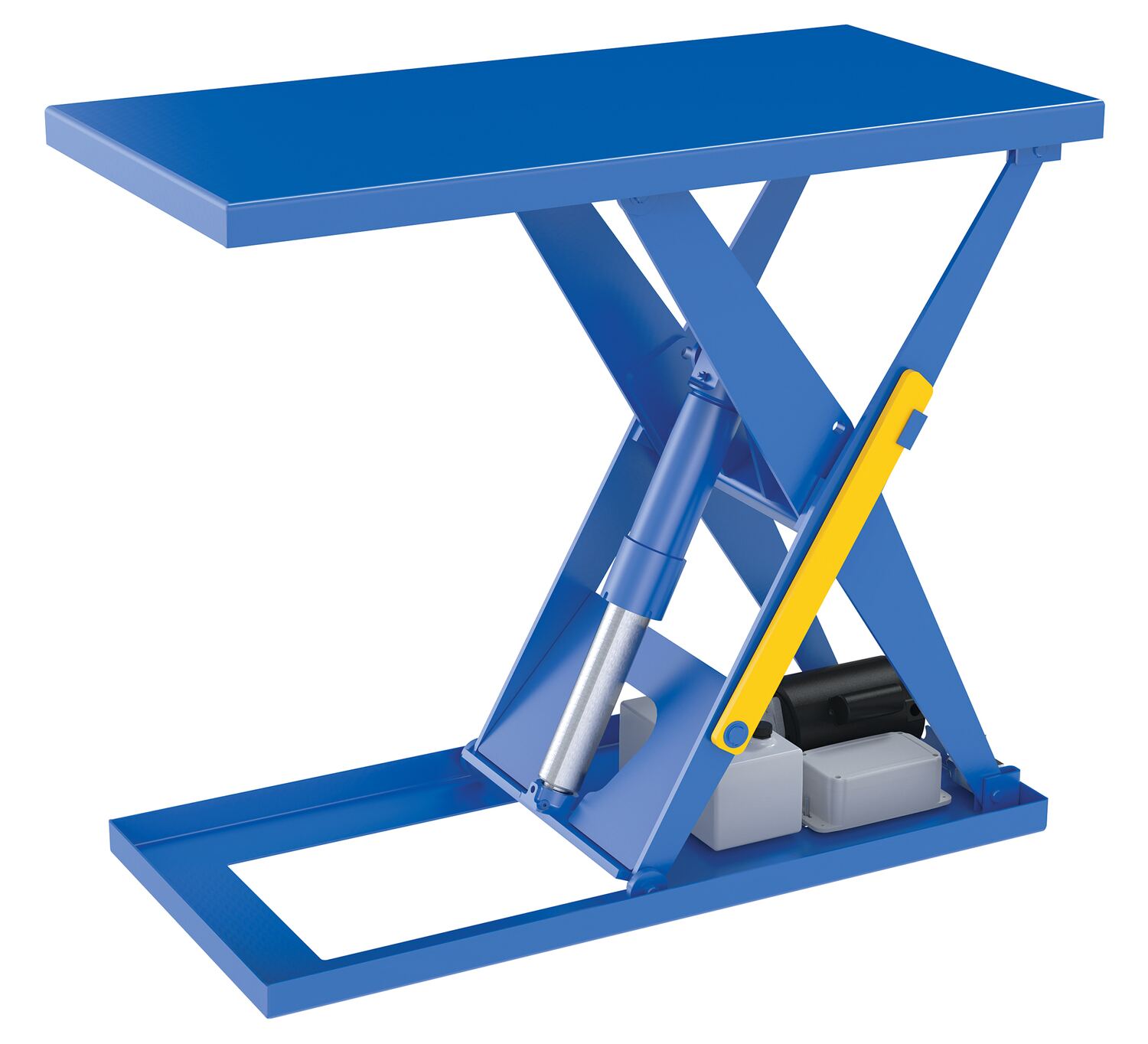

Vestil - EHLT-E-2448-2-41
An electric hydraulic lift table is an efficient addition to a variety of manufacturing and shipping facilities. With an economical design, the 2,000 lb. capacity table lifts and supports items both large and small. The raising and lowering of the table is completed by a push button hand control that allows the user to maintain a safe distance from the actively moving table. An upper travel limit switch is engaged when the table reaches its maximum height, preventing any over extension. With safety always being the number one priority, an internal safety velocity fuse maintains platform height in the event of a hose or fitting failure.
- • Open design for loading and unloading from all four sides
- • Welded steel construction
- • Safety maintenance prop included
- • Internal power unit
Additional Information
Lifting Height Min.8 in
Platform Length24 in
Overall Width24 in
Overall Height48 in
Length41 in
Platform Width48 in
Load Capacity2000 lb
Includes(1) Steel Economical Electric Hydraulic Lift Table
PhaseThree
ColorBlue
Voltage460V
Frame MaterialSteel
Power SourceElectric - Corded
HP2 HP
MaterialSteel
