Data Sheet Product Description

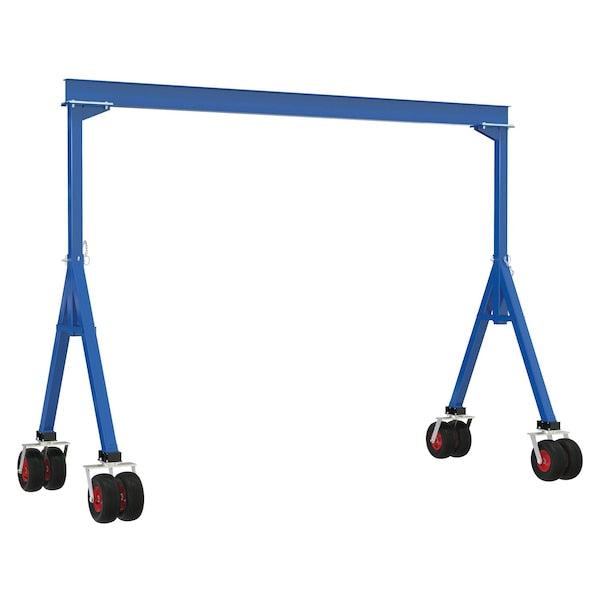

Vestil - FHS-4-20-PNU
The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.
- • Quick relocation ability
- • Pinned connections for quick set up and take down
- • Blue liquid paint finish
- • Smooth rolling with four swivel pneumatic casters
Additional Information
Max. I Beam Height12-3/16 in
Gantry Crane Depth250-3/4 in
I Beam Flange Width4 in
Height144-3/16 in
Wheel Width5.875 in
Wheel Diameter15-1/2 in
Load Capacity4000 lb
MaterialSteel
Caster TypeLocking
FinishPainted
ColorBlue
IncludesSteel Fixed Height Gantry Crane with Pneumatic Rubber Casters
