category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/a4a1ebd9-83c0-4f78-ace1-168f2bf5ab6c.pdf
manufacturer:
Vestil
mpn:
FHS-8-10-VG
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

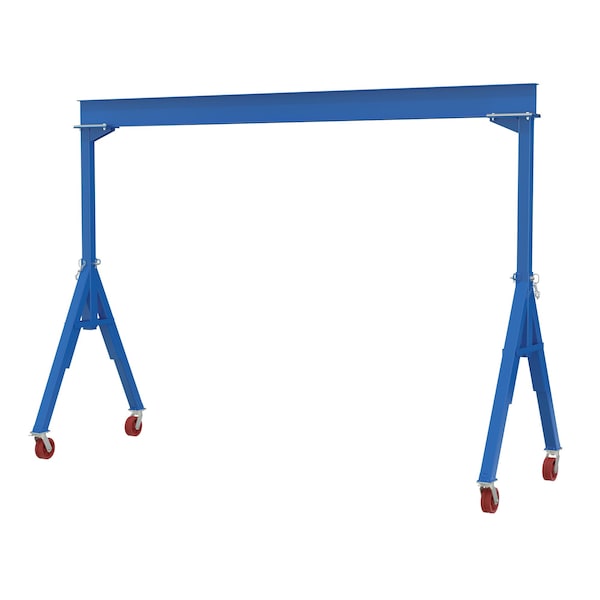

Vestil - FHS-8-10-VG
The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.
Additional Information
Max. I Beam Height121 in.
Gantry Crane Depth119-3/4 in.
I Beam Flange Width4 in.
Wheel Diameter8 in.
I Beam Height8-1/8 in.
Wheel Width3 in.
Height129-5/16 in.
ItemSteel Fixed Crane 10' Cast Iron 8K
Load Capacity8,000 lb.
MaterialSteel
StandardsOSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications
ColorBlue
Includes(4) V-Groove Cast Iron Casters
Caster MaterialCast Iron
FinishPainted
