category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/81f4e164-fb30-4c3c-a7ba-077ea77f75e4.pdf
manufacturer:
Vestil
mpn:
FHSN-2-20-VG
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

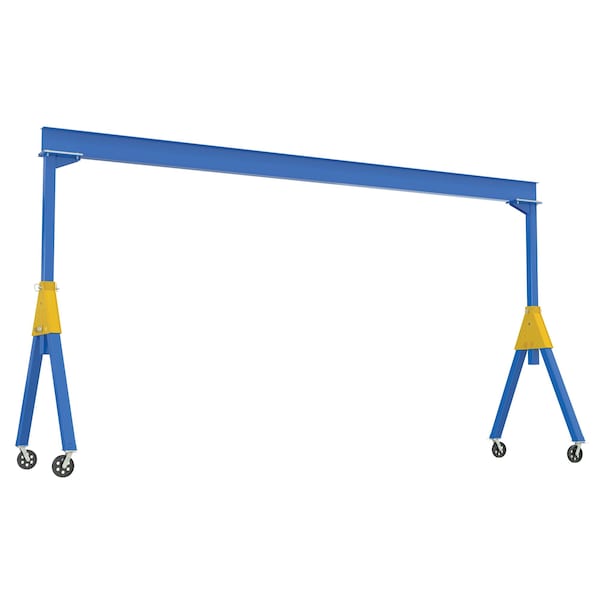

Vestil - FHSN-2-20-VG
The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with the standard four (4) V-groove casters. These allow for quick movement and positioning adjustments. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.
Additional Information
Max. I Beam Height120-3/8 in.
Gantry Crane Depth239-3/4 in.
I Beam Flange Width4 in.
I Beam Height10-1/8 in.
Wheel Diameter8 in.
Wheel Width2 in.
Height130-1/2 in.
ItemKD Gantry Crane 20' Cast Iron 2K
Load Capacity2,000 lb
MaterialSteel
StandardsCMAA and ANSI specifications
Caster MaterialCast Iron
Includes(4) V-Groove Cast Iron Casters
ColorBlue
FinishPainted
