category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/81f4e164-fb30-4c3c-a7ba-077ea77f75e4.pdf
manufacturer:
Vestil
mpn:
FHSN-8-10-VG
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

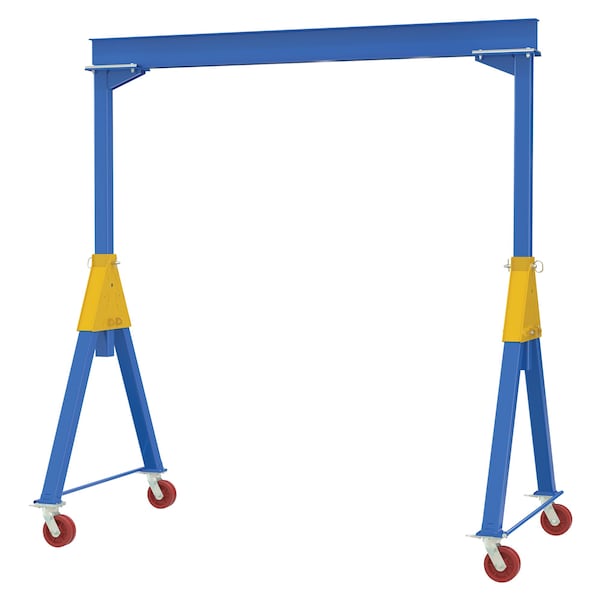

Vestil - FHSN-8-10-VG
The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.
Additional Information
Max. I Beam Height121 in.
Gantry Crane Depth119-3/4 in.
I Beam Flange Width4 in.
Wheel Width3 in.
Wheel Diameter8 in.
I Beam Height8-1/8 in.
Height129-11/16 in.
ItemKD Gantry Crane 10' Cast Iron 8K
Load Capacity8,000 lb.
MaterialSteel
FinishPainted
Caster MaterialCast Iron
ColorBlue
StandardsCMAA and ANSI specifications
Includes(4) V-Groove Cast Iron Casters
