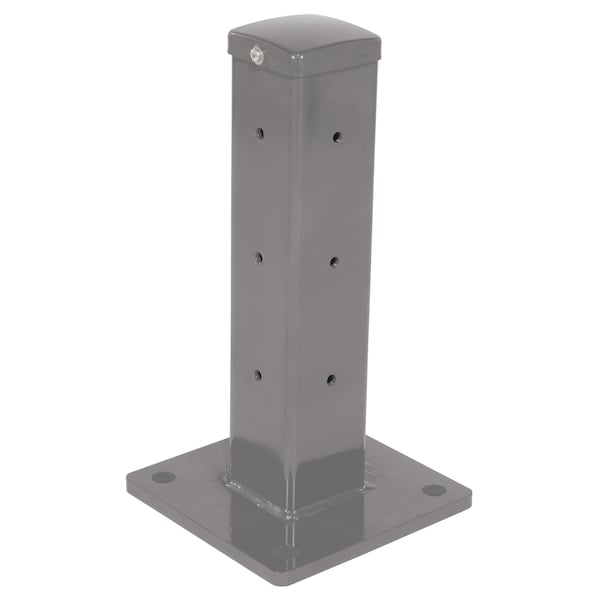

Vestil GR-F3R-DI-TP18-GYSG Rigid Tube Post 18In Bolt-On Style Gray Semi Gloss

Vestil GR-F3R-DI-TP18-GYSG Rigid Tube Post 18In Bolt-On Style Gray Semi Gloss

Dropship

Get it by Sat, Feb 21 - Thu, Feb 26

SKU kpi214-GR-F3R-DI-TP18-GYSG

$133.29 USD
$133.29 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Material Handling
country_of_origin: USA
data_sheet: https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_GRxxDxxxxmanualxxfeb1cb.pdf
manufacturer: Vestil
mpn: GR-F3R-DI-TP18-GYSG
subcategory: Dock & Warehouse Equipment
type: Warehouse Safety Guards & Protectors

Product Description

Vestil - GR-F3R-DI-TP18-GYSG

Create a modular system to protect equipment, inventory, and individuals from damage or injury with this highly visible powder coat yellow Structural Guard Rail. Triple ridge corrugated rails are constructed from 1/8" thick material, made for high impact resistance indoors or out. Posts are constructed of round corner 1/4" thick material. The steel base plate measures 10" square and is 5/8" thick. Bolts and washers are provided with individual rail sections. Concrete mounting kit is available separately. Provide a strong barrier with easy accessibility with our Drop-In Style rails. Slide rail sections into post saddles for simple assembly. Each Drop-In Style rail section includes two brackets. Bolt-On Style rails are designed for permanent installation. Models GR-TP-YL and GR-TP-GAL posts include mounting holes on all four sides for use in corners or center posts.

Additional Information

Depth9-7/8 in.
Length9.875
Height18
Width9.875
Overall Length9-7/8 in.
Overall Height18 in.
Overall Width9-7/8 in.
Wall Thickness1/4 in.
Length (Ft.)0.8229 ft.
Mounting Plate Dimensions9-7/8" x 9-7/8"
Item18" 3 Rib Rigid Post Drop in SG GY
MaterialSteel
FinishPowder Coat
Weight36
For Use WithStructural Guard Rails
ColorGray Semi Gloss
Includes(1) Rigid Tube Post Drop-in
Guard Rail ItemStructural Guard Rails (drop-in and bolt-on style)
Features3 Ribbed design for added strength. Gray semi gloss baked-in. powder-coated fin.ish for added toughness. Drop-in. rail with brackets and hardware. Heavy-duty design protects corners of buildin.gs and machin.ery from fork truck and vehicle damage
