Data Sheet Product Description

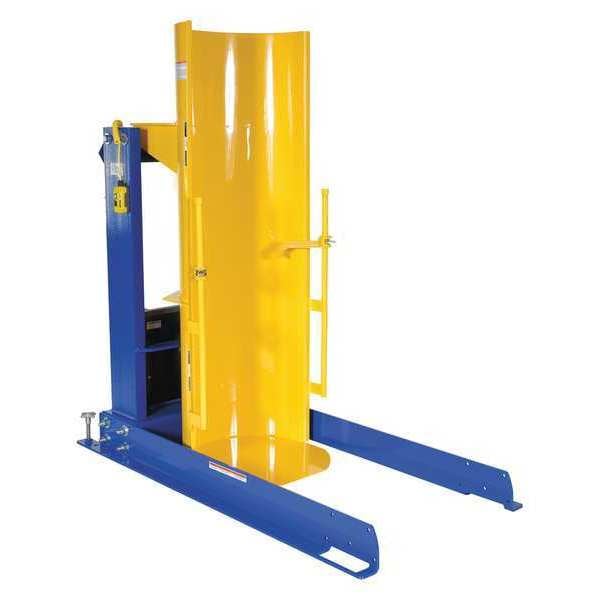

Vestil - HDD-36-10-S
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 36 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 61.5 in, Overall Height 60 in, Overall Width 36 in, Portability Stationary
Additional Information
Overall Height60 in
Overall Width36 in
For Maximum Drum Diameter24 in
Manufacturer Warranty Length1 yr Limited
Overall Depth61.5 in
Power Cord Length8 ft
Dump Height36 in
Rotation Height95.75 in
Item Drum Dumper
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Load Capacity 1,000 lb
Drum Capacity 55 gal, 30
Voltage 115V
Number of Drums 1
Standards OSHA
Rotation Angle 135 Degrees
Phase Single
Dump Angle 45 Degrees
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Product Type Drum Dumper
For Drum Capacity 30 gal, 55 gal
Drum Securing Mechanism Clamp
Includes Battery Batteries Not Included
Raise Time 42 in/sec
For Container Type Drums
Operating Voltage 115V AC
Portability Stationary
Frequency 60 Hz
Housing Color Blue, Yellow
Assembly Fully Assembled
Housing Finish Powder Coated
Maximum Motor Horsepower 3/4 hp
Vertical Lift 95.75 in
For Drum Material Fiber, Plastic, Metal
Motor Type AC Motor
Weight Capacity 1,000 lb
Body Material Steel
Caster Type (2) Rigid; (2) Swivel
Chute Material Steel
Power Source Hydraulic
Electrical Connection Power Cord
