category:
Storage & Workspace
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_HDDxxxxMANUALxx72614d.pdf
manufacturer:
Vestil
mpn:
HDD-36-15-P
subcategory:
Drums & Liquid Storage
type:
Drums & Accessories
Data Sheet Product Description

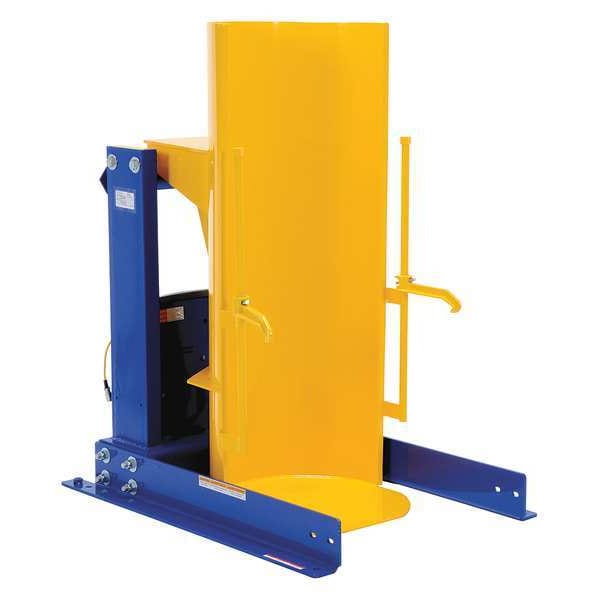

Vestil - HDD-36-15-P
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 36 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 61.5 in, Overall Height 63.75 in, Overall Width 36 in, Portability Casters
Additional Information
Level Height63 3/4 in
Overall Height63.75 in
Overall Length61 1/2 in
Overall Width36 in
Rotated Height96 in
Dia.24 in
Dispensing Height36 in
Dump Height36 in
Overall Depth61.5 in
Rotation Height96 in
Manufacturer Warranty Length1 yr Limited
For Maximum Drum Diameter24 in
Power Cord Length8 ft
Item Drum Dumper
For Use With 30 and 55 gal Drums
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Total Raise Time 42 sec
Lowest Position of Jaws 27 in
Rotation Angle 135 Degrees
Load Capacity 1,500 lb
Rotation 135 Degrees
Construction Steel
Finish Powder Coated
Number of Drums 1
Max. Lift 96 in
Clearance Between Legs 28 1/2 in
Drum Capacity 55 gal, 30
Motor HP 3/4 hp
Wheels 5 in x 2 in Polyurethane
Casters 8 in x 3 in Phenolic
Type Portable
Voltage 115
Drum Rotation 135 Degrees
Dump Angle 45 Degrees
Phase Single
Standards OSHA
Product Type Drum Dumper
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Weight Capacity 1,500 lb
Motor Type AC Motor
Portability Casters
Chute Material Steel
Wheel Material Polyurethane
Maximum Motor Horsepower 3/4 hp
For Drum Capacity 30 gal, 55 gal
Wheel Type Caster
For Container Type Drums
For Drum Material Fiber, Plastic, Metal
Assembly Fully Assembled
Includes Battery Batteries Not Included
Power Source Hydraulic
Drum Securing Mechanism Clamp
Leg Clearance 28 1/2 in
Operating Voltage 115V AC
Frequency 60 Hz
Housing Color Blue, Yellow
Housing Finish Powder Coated
Caster Type (2) Rigid; (2) Swivel
Electrical Connection Power Cord
Raise Time 42 in/sec
Vertical Lift 96 in
Body Material Steel
