Data Sheet Product Description

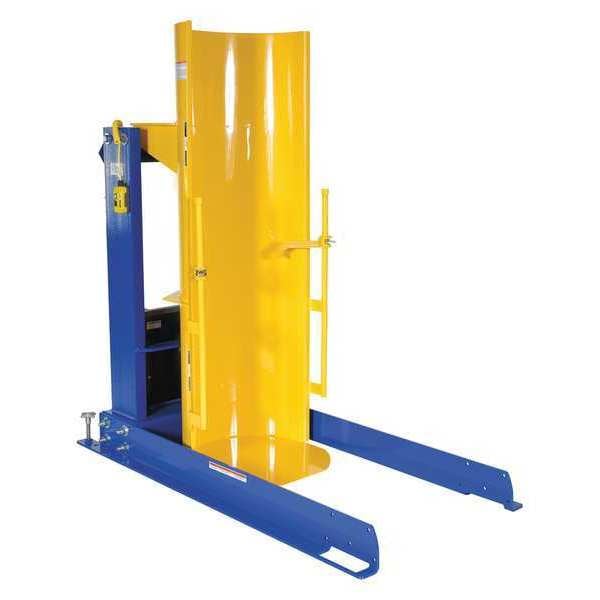

Vestil - HDD-36-15-S
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 36 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 61.5 in, Overall Height 60 in, Overall Width 36 in, Portability Stationary
Additional Information
Overall Height60 in
Level Height60 in
Dispensing Height36 in
Dia.24 in
Overall Width36 in
Overall Length61 1/2 in
Rotated Height95 3/4 in
Dump Height36 in
Manufacturer Warranty Length1 yr Limited
Rotation Height95.75 in
For Maximum Drum Diameter24 in
Power Cord Length8 ft
Overall Depth61.5 in
Item Drum Dumper
For Use With 30 and 55 gal Drums
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Clearance Between Legs 28 1/2 in
Total Raise Time 42 sec
Finish Powder Coated
Max. Lift 95 3/4 in
Load Capacity 1,500 lb
Drum Rotation 135 Degrees
Rotation Angle 135 Degrees
Voltage 115
Construction Steel
Dump Angle 45 Degrees
Number of Drums 1
Lowest Position of Jaws 27 in
Drum Capacity 55 gal, 30
Rotation 135 Degrees
Type Stationary
Motor HP 3/4 hp
Phase Single
Standards OSHA
Product Type Drum Dumper
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Assembly Fully Assembled
Operating Voltage 115V AC
For Drum Capacity 30 gal, 55 gal
Chute Material Steel
Maximum Motor Horsepower 3/4 hp
For Container Type Drums
For Drum Material Fiber, Plastic, Metal
Portability Stationary
Power Source Hydraulic
Housing Color Blue, Yellow
Caster Type (2) Rigid; (2) Swivel
Body Material Steel
Housing Finish Powder Coated
Leg Clearance 28 1/2 in
Vertical Lift 95.75 in
Weight Capacity 1,500 lb
Drum Securing Mechanism Clamp
Includes Battery Batteries Not Included
Electrical Connection Power Cord
Frequency 60 Hz
Motor Type AC Motor
Raise Time 42 in/sec
