category:
Storage & Workspace
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_HDDxxxxMANUALxx72614d.pdf
manufacturer:
Vestil
mpn:
HDD-36-7-P
subcategory:
Drums & Liquid Storage
type:
Drums & Accessories
Data Sheet Product Description

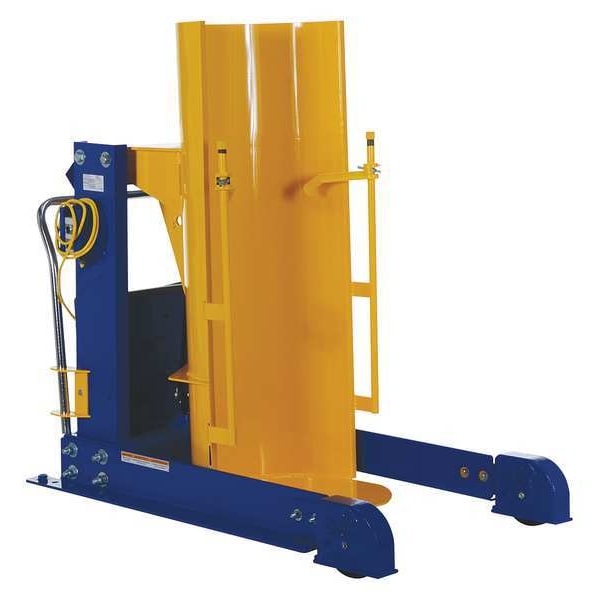

Vestil - HDD-36-7-P
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 36 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 61.5 in, Overall Height 63.75 in, Overall Width 36 in, Portability Casters
Additional Information
Overall Height63.75 in
Overall Width36 in
Dump Height36 in
Overall Depth61.5 in
Rotation Height96 in
For Maximum Drum Diameter24 in
Power Cord Length8 ft
Manufacturer Warranty Length1 yr Limited
Item Drum Dumper
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Drum Capacity 55 gal, 30
Number of Drums 1
Load Capacity 750 lb
Standards OSHA
Dump Angle 45 Degrees
Phase Single
Rotation Angle 135 Degrees
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Product Type Drum Dumper
Weight Capacity 750 lb
Frequency 60 Hz
Housing Color Blue, Yellow
Assembly Fully Assembled
Drum Securing Mechanism Clamp
Maximum Motor Horsepower 3/4 hp
For Drum Material Fiber, Plastic, Metal
Raise Time 42 in/sec
Wheel Type Caster
Housing Finish Powder Coated
For Drum Capacity 30 gal, 55 gal
For Container Type Drums
Electrical Connection Power Cord
Portability Casters
Vertical Lift 96 in
Caster Type (2) Rigid; (2) Swivel
Power Source Hydraulic
Chute Material Steel
Includes Battery Batteries Not Included
Motor Type AC Motor
Body Material Steel
Operating Voltage 115V AC
