category:
Storage & Workspace
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_HDDxxxxMANUALxx72614d.pdf
manufacturer:
Vestil
mpn:
HDD-36-7-S
subcategory:
Drums & Liquid Storage
type:
Drums & Accessories
Data Sheet Product Description

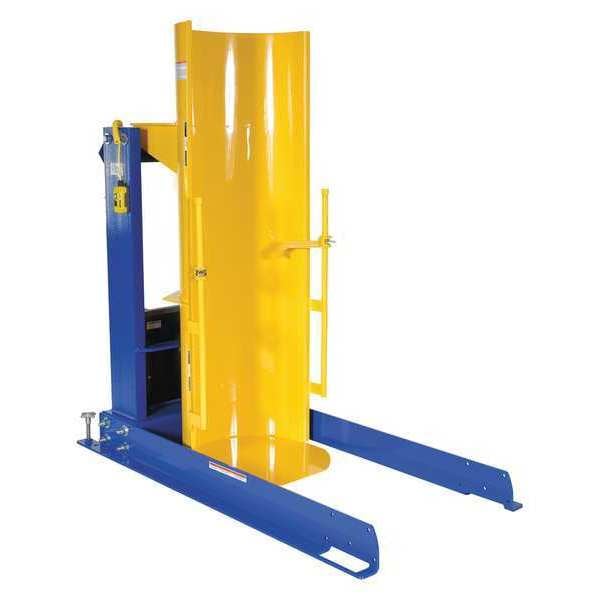

Vestil - HDD-36-7-S
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 36 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 61.5 in, Overall Height 60 in, Overall Width 36 in, Portability Stationary
Additional Information
Dia.24 in
Overall Height60 in
Dispensing Height36 in
Overall Width36 in
Overall Length61 1/2 in
Rotated Height95 3/4 in
Level Height60 in
Overall Depth61.5 in
Dump Height36 in
For Maximum Drum Diameter24 in
Rotation Height95.75 in
Manufacturer Warranty Length1 yr Limited
Power Cord Length8 ft
Item Drum Dumper
For Use With 30 and 55 gal Drums
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Clearance Between Legs 28 1/2 in
Construction Steel
Max. Lift 95 3/4 in
Type Stationary
Drum Capacity 55 gal, 30
Voltage 115
Lowest Position of Jaws 27 in
Drum Rotation 135 Degrees
Rotation Angle 135 Degrees
Dump Angle 45 Degrees
Number of Drums 1
Rotation 135 Degrees
Load Capacity 750 lb
Total Raise Time 34 sec
Finish Powder Coated
Motor HP 3/4 hp
Standards OSHA
Phase Single
Product Type Drum Dumper
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
For Drum Material Fiber, Plastic, Metal
Caster Type (2) Rigid; (2) Swivel
Frequency 60 Hz
Operating Voltage 115V AC
Motor Type AC Motor
Chute Material Steel
Leg Clearance 28 1/2 in
Power Source Hydraulic
Includes Battery Batteries Not Included
Weight Capacity 750 lb
Maximum Motor Horsepower 3/4 hp
Drum Securing Mechanism Clamp
For Drum Capacity 30 gal, 55 gal
Body Material Steel
Portability Stationary
Assembly Fully Assembled
Housing Color Blue, Yellow
Electrical Connection Power Cord
Vertical Lift 95.75 in
Raise Time 34 in/sec
Housing Finish Powder Coated
For Container Type Drums
