category:
Storage & Workspace
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_HDDxxxxMANUALxx72614d.pdf
manufacturer:
Vestil
mpn:
HDD-48-15-P
subcategory:
Drums & Liquid Storage
type:
Drums & Accessories
Data Sheet Product Description

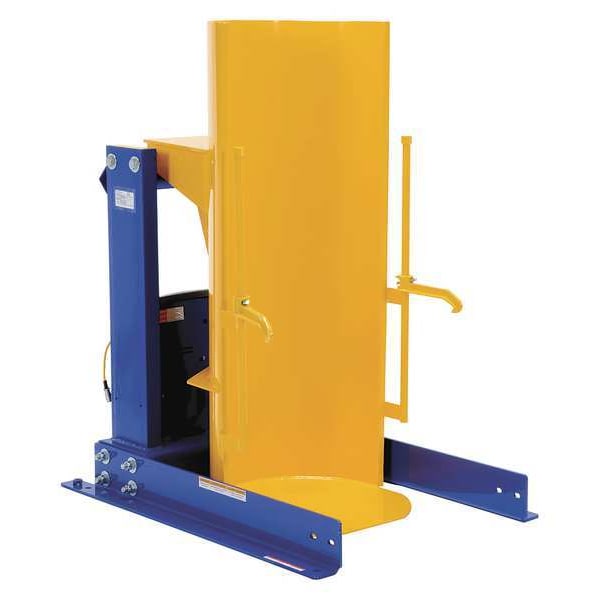

Vestil - HDD-48-15-P
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 48 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 71.5 in, Overall Height 72.5 in, Overall Width 36 in, Portability Casters
Additional Information
Overall Width36 in
Level Height72 1/2 in
Overall Height72.5 in
Dispensing Height48 in
Rotated Height116 3/4 in
Dia.24 in
Overall Length71 1/2 in
Manufacturer Warranty Length1 yr Limited
For Maximum Drum Diameter24 in
Dump Height48 in
Power Cord Length8 ft
Rotation Height116.75 in
Overall Depth71.5 in
Item Drum Dumper
For Use With 30 and 55 gal Drums
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Total Raise Time 42 sec
Rotation 135 Degrees
Number of Drums 1
Load Capacity 1,500 lb
Drum Capacity 55 gal, 30
Construction Steel
Clearance Between Legs 28 1/2 in
Type Portable
Rotation Angle 135 Degrees
Dump Angle 45 Degrees
Wheels 5 in x 2 in Polyurethane
Max. Lift 116 3/4 in
Lowest Position of Jaws 27 in
Drum Rotation 135 Degrees
Voltage 115
Motor HP 3/4 hp
Finish Powder Coated
Casters 8 in x 3 in Phenolic
Standards OSHA
Phase Single
Product Type Drum Dumper
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Raise Time 42 in/sec
Body Material Steel
Wheel Type Caster
Motor Type AC Motor
Leg Clearance 28 1/2 in
Portability Casters
Assembly Fully Assembled
Drum Securing Mechanism Clamp
Power Source Hydraulic
For Drum Material Fiber, Plastic, Metal
Chute Material Steel
Includes Battery Batteries Not Included
Frequency 60 Hz
Weight Capacity 1,500 lb
For Drum Capacity 30 gal, 55 gal
Housing Color Blue, Yellow
For Container Type Drums
Housing Finish Powder Coated
Wheel Material Polyurethane
Electrical Connection Power Cord
Caster Type (2) Rigid; (2) Swivel
Maximum Motor Horsepower 3/4 hp
Operating Voltage 115V AC
Vertical Lift 116.75 in
