Data Sheet Product Description

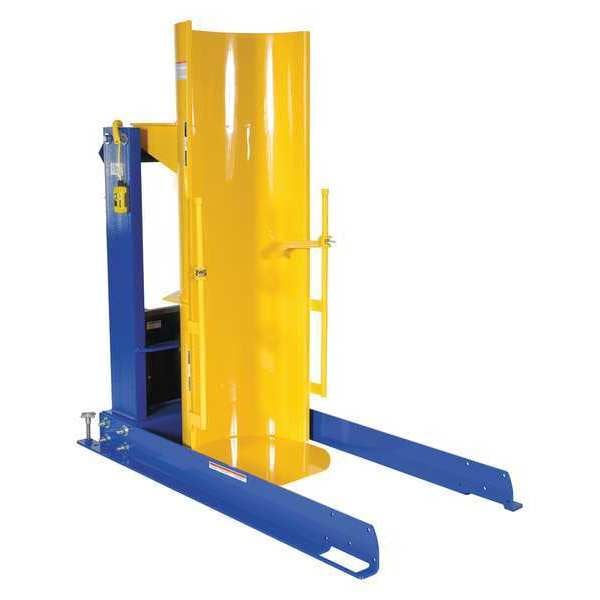

Vestil - HDD-48-15-S
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 48 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 71.5 in, Overall Height 72 in, Overall Width 36 in, Portability Stationary
Additional Information
Rotated Height116 in
Overall Width36 in
Overall Length71 1/2 in
Level Height72 in
Overall Height72 in
Dispensing Height48 in
Dia.24 in
Manufacturer Warranty Length1 yr Limited
Dump Height48 in
Overall Depth71.5 in
Power Cord Length8 ft
Rotation Height116 in
For Maximum Drum Diameter24 in
Item Drum Dumper
For Use With 30 and 55 gal Drums
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Motor HP 3/4 hp
Voltage 115
Rotation Angle 135 Degrees
Lowest Position of Jaws 27 in
Finish Powder Coated
Clearance Between Legs 28 1/2 in
Drum Rotation 135 Degrees
Total Raise Time 42 sec
Max. Lift 116 in
Rotation 135 Degrees
Load Capacity 1,500 lb
Number of Drums 1
Type Stationary
Construction Steel
Drum Capacity 55 gal, 30
Dump Angle 45 Degrees
Phase Single
Standards OSHA
Product Type Drum Dumper
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Housing Finish Powder Coated
For Container Type Drums
Power Source Hydraulic
Drum Securing Mechanism Clamp
Electrical Connection Power Cord
Operating Voltage 115V AC
For Drum Material Fiber, Plastic, Metal
Vertical Lift 116 in
Housing Color Blue, Yellow
Portability Stationary
Caster Type (2) Rigid; (2) Swivel
Weight Capacity 1,500 lb
Maximum Motor Horsepower 3/4 hp
Leg Clearance 28 1/2 in
Raise Time 42 in/sec
For Drum Capacity 30 gal, 55 gal
Frequency 60 Hz
Body Material Steel
Motor Type AC Motor
Assembly Fully Assembled
Includes Battery Batteries Not Included
Chute Material Steel
