Data Sheet Product Description

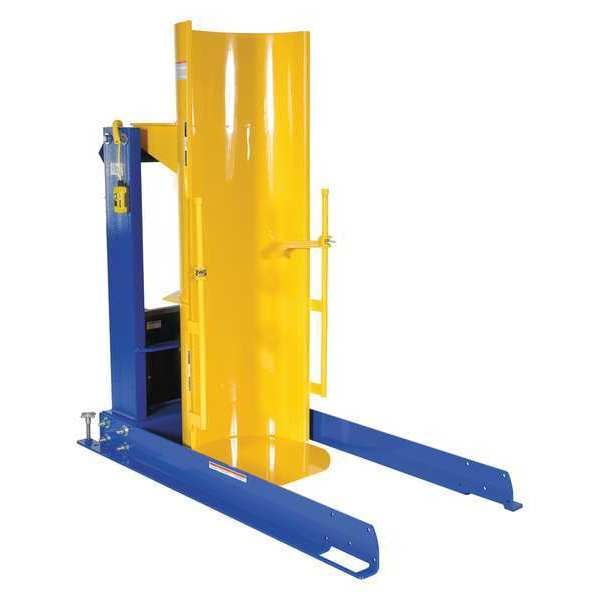

Vestil - HDD-48-7-S
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 48 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 71.5 in, Overall Height 72 in, Overall Width 36 in, Portability Stationary
Additional Information
Overall Width36 in
Rotated Height116 in
Overall Height72 in
Overall Length71 1/2 in
Dia.24 in
Level Height72 in
Dispensing Height48 in
Rotation Height116 in
Power Cord Length8 ft
Manufacturer Warranty Length1 yr Limited
Overall Depth71.5 in
Dump Height48 in
For Maximum Drum Diameter24 in
Item Drum Dumper
For Use With 30 and 55 gal Drums
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Type Stationary
Number of Drums 1
Dump Angle 45 Degrees
Construction Steel
Total Raise Time 34 sec
Finish Powder Coated
Voltage 115
Motor HP 3/4 hp
Drum Rotation 135 Degrees
Lowest Position of Jaws 27 in
Drum Capacity 55 gal, 30
Max. Lift 116 in
Rotation Angle 135 Degrees
Load Capacity 750 lb
Clearance Between Legs 28 1/2 in
Rotation 135 Degrees
Standards OSHA
Phase Single
Product Type Drum Dumper
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Leg Clearance 28 1/2 in
Electrical Connection Power Cord
Power Source Hydraulic
Raise Time 34 in/sec
For Drum Material Fiber, Plastic, Metal
Includes Battery Batteries Not Included
Weight Capacity 750 lb
For Container Type Drums
Operating Voltage 115V AC
Chute Material Steel
Body Material Steel
Assembly Fully Assembled
Caster Type (2) Rigid; (2) Swivel
Housing Color Blue, Yellow
Housing Finish Powder Coated
Frequency 60 Hz
Portability Stationary
Drum Securing Mechanism Clamp
Vertical Lift 116 in
Maximum Motor Horsepower 3/4 hp
Motor Type AC Motor
For Drum Capacity 30 gal, 55 gal
