Data Sheet Product Description

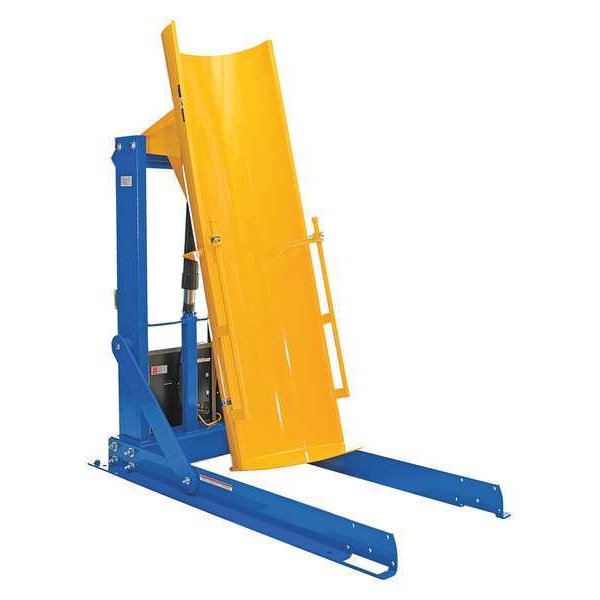

Vestil - HDD-60-10-S
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 60 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 80 in, Overall Height 84 in, Overall Width 36 in, Portability Stationary
Additional Information
Overall Height84 in
Overall Width36 in
Power Cord Length8 ft
Dump Height60 in
Manufacturer Warranty Length1 yr Limited
For Maximum Drum Diameter24 in
Rotation Height136.75 in
Overall Depth80 in
Item Drum Dumper
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Number of Drums 1
Load Capacity 1,000 lb
Drum Capacity 55 gal, 30
Standards OSHA
Dump Angle 45 Degrees
Rotation Angle 135 Degrees
Phase Single
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Product Type Drum Dumper
For Drum Material Fiber, Plastic, Metal
Maximum Motor Horsepower 3/4 hp
Drum Securing Mechanism Clamp
Caster Type (2) Rigid; (2) Swivel
For Container Type Drums
Assembly Fully Assembled
Motor Type AC Motor
Chute Material Steel
Housing Color Blue, Yellow
Weight Capacity 1,000 lb
Power Source Hydraulic
Frequency 60 Hz
Electrical Connection Power Cord
Raise Time 42 in/sec
Body Material Steel
Vertical Lift 136.75 in
Includes Battery Batteries Not Included
For Drum Capacity 30 gal, 55 gal
Housing Finish Powder Coated
Operating Voltage 115V AC
Portability Stationary
