category:
Storage & Workspace
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_HDDxxxxMANUALxx72614d.pdf
manufacturer:
Vestil
mpn:
HDD-60-15-P
subcategory:
Drums & Liquid Storage
type:
Drums & Accessories
Data Sheet Product Description

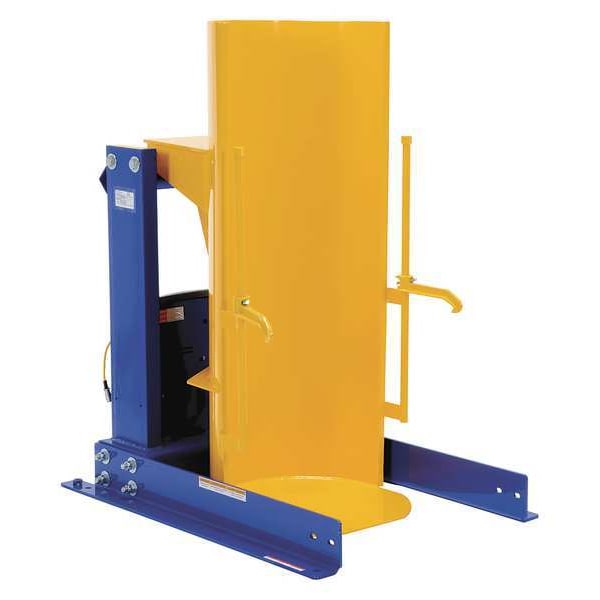

Vestil - HDD-60-15-P
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 60 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 80 in, Overall Height 84.5 in, Overall Width 36 in, Portability Casters
Additional Information
Overall Length80 in
Rotated Height137 1/4 in
Overall Width36 in
Dispensing Height60 in
Overall Height84.5 in
Dia.24 in
Level Height84 1/2 in
For Maximum Drum Diameter24 in
Dump Height60 in
Rotation Height137.25 in
Overall Depth80 in
Power Cord Length8 ft
Manufacturer Warranty Length1 yr Limited
Item Drum Dumper
For Use With 30 and 55 gal Drums
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Casters 8 in x 3 in Phenolic
Construction Steel
Rotation Angle 135 Degrees
Wheels 5 in x 2 in Polyurethane
Finish Powder Coated
Drum Rotation 135 Degrees
Dump Angle 45 Degrees
Total Raise Time 42 sec
Clearance Between Legs 28 1/2 in
Voltage 115
Type Portable
Load Capacity 1,500 lb
Number of Drums 1
Drum Capacity 55 gal, 30
Max. Lift 137 1/4 in
Rotation 135 Degrees
Lowest Position of Jaws 27 in
Motor HP 3/4 hp
Standards OSHA
Phase Single
Product Type Drum Dumper
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Operating Voltage 115V AC
For Drum Material Fiber, Plastic, Metal
Weight Capacity 1,500 lb
For Container Type Drums
Drum Securing Mechanism Clamp
Portability Casters
Includes Battery Batteries Not Included
Vertical Lift 137.25 in
Power Source Hydraulic
Caster Type (2) Rigid; (2) Swivel
Raise Time 42 in/sec
Frequency 60 Hz
Motor Type AC Motor
Chute Material Steel
Leg Clearance 28 1/2 in
Wheel Type Caster
Housing Color Blue, Yellow
For Drum Capacity 30 gal, 55 gal
Electrical Connection Power Cord
Wheel Material Polyurethane
Maximum Motor Horsepower 3/4 hp
Assembly Fully Assembled
Body Material Steel
Housing Finish Powder Coated
