category:
Storage & Workspace
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_HDDxxxxMANUALxx72614d.pdf
manufacturer:
Vestil
mpn:
HDD-72-10-P
subcategory:
Drums & Liquid Storage
type:
Drums & Accessories
Data Sheet Product Description

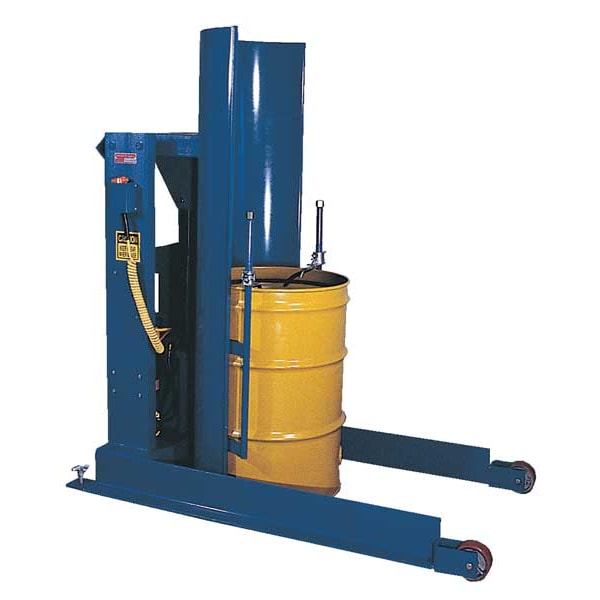

Vestil - HDD-72-10-P
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 72 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 92 in, Overall Height 96 in, Overall Width 36 in, Portability Casters
Additional Information
Overall Height96 in
Overall Width36 in
Dump Height72 in
Manufacturer Warranty Length1 yr Limited
Rotation Height157.5 in
Overall Depth92 in
Power Cord Length8 ft
For Maximum Drum Diameter24 in
Item Drum Dumper
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Number of Drums 1
Load Capacity 1,000 lb
Drum Capacity 55 gal, 30
Dump Angle 45 Degrees
Standards OSHA
Phase Single
Rotation Angle 135 Degrees
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Product Type Drum Dumper
For Drum Material Fiber, Plastic, Metal
Frequency 60 Hz
Operating Voltage 115V AC
Caster Type (2) Rigid; (2) Swivel
Body Material Steel
Portability Casters
Wheel Type Caster
Assembly Fully Assembled
Power Source Hydraulic
Weight Capacity 1,000 lb
Includes Battery Batteries Not Included
For Drum Capacity 30 gal, 55 gal
Vertical Lift 157.5 in
Raise Time 42 in/sec
Maximum Motor Horsepower 3/4 hp
For Container Type Drums
Chute Material Steel
Drum Securing Mechanism Clamp
Housing Color Blue, Yellow
Housing Finish Powder Coated
Electrical Connection Power Cord
Motor Type AC Motor
