category:
Storage & Workspace
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_HDDxxxxMANUALxx72614d.pdf
manufacturer:
Vestil
mpn:
HDD-72-15-P
subcategory:
Drums & Liquid Storage
type:
Drums & Accessories
Data Sheet Product Description

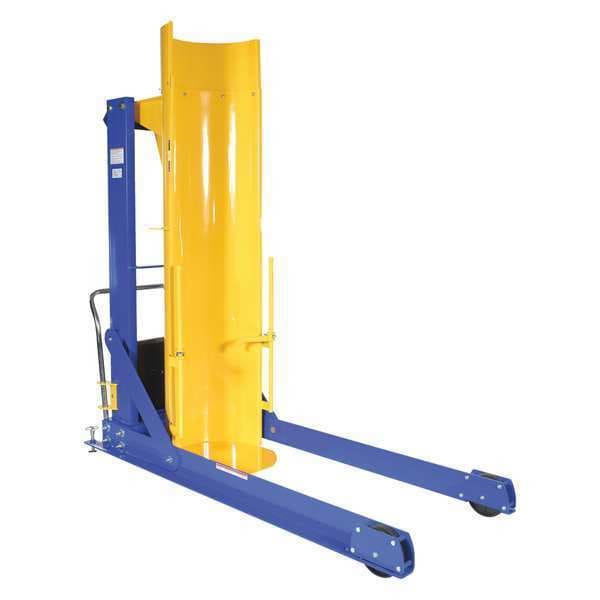

Vestil - HDD-72-15-P
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 72 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 92 in, Overall Height 96 in, Overall Width 36 in, Portability Casters
Additional Information
Overall Height96 in
Dispensing Height72 in
Rotated Height157 1/2 in
Overall Length92 in
Dia.24 in
Overall Width36 in
Level Height96 in
Power Cord Length8 ft
Dump Height72 in
For Maximum Drum Diameter24 in
Manufacturer Warranty Length1 yr Limited
Overall Depth92 in
Rotation Height157.5 in
Item Drum Dumper
For Use With 30 and 55 gal Drums
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Load Capacity 1,500 lb
Type Portable
Rotation 135 Degrees
Max. Lift 157 1/2 in
Rotation Angle 135 Degrees
Number of Drums 1
Casters 8 in x 3 in Phenolic
Clearance Between Legs 28 1/2 in
Lowest Position of Jaws 27 in
Wheels 5 in x 2 in Polyurethane
Voltage 115
Drum Capacity 55 gal, 30
Motor HP 3/4 hp
Drum Rotation 135 Degrees
Construction Steel
Total Raise Time 42 sec
Dump Angle 45 Degrees
Finish Powder Coated
Phase Single
Standards OSHA
Product Type Drum Dumper
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Electrical Connection Power Cord
Weight Capacity 1,500 lb
Includes Battery Batteries Not Included
Raise Time 42 in/sec
Power Source Hydraulic
Body Material Steel
Housing Finish Powder Coated
For Container Type Drums
Vertical Lift 157.5 in
Wheel Type Caster
Chute Material Steel
Caster Type (2) Rigid; (2) Swivel
Assembly Fully Assembled
Maximum Motor Horsepower 3/4 hp
For Drum Material Fiber, Plastic, Metal
For Drum Capacity 30 gal, 55 gal
Housing Color Blue, Yellow
Wheel Material Polyurethane
Frequency 60 Hz
Leg Clearance 28 1/2 in
Motor Type AC Motor
Drum Securing Mechanism Clamp
Portability Casters
Operating Voltage 115V AC
