category:
Storage & Workspace
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_HDDxxxxMANUALxx72614d.pdf
manufacturer:
Vestil
mpn:
HDD-72-15-S
subcategory:
Drums & Liquid Storage
type:
Drums & Accessories
Data Sheet Product Description

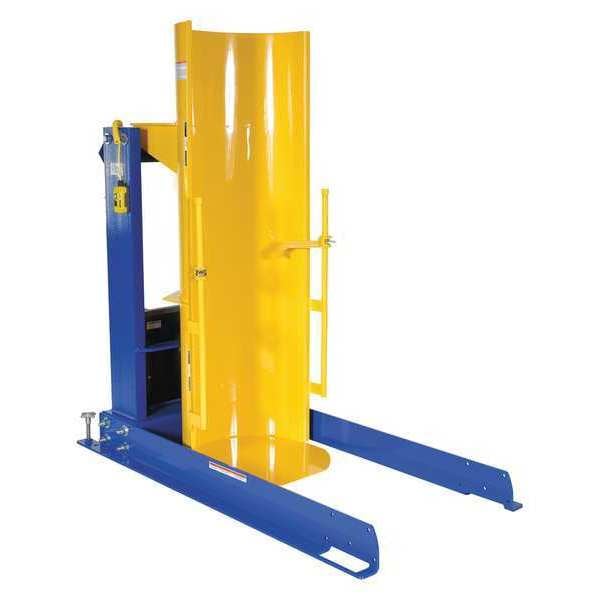

Vestil - HDD-72-15-S
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 72 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 92 in, Overall Height 95.5 in, Overall Width 36 in, Portability Stationary
Additional Information
Overall Length92 in
Level Height95 1/2 in
Overall Width36 in
Overall Height95.5 in
Rotated Height157 1/4 in
Dispensing Height72 in
Dia.24 in
Overall Depth92 in
Manufacturer Warranty Length1 yr Limited
Power Cord Length8 ft
Rotation Height157.25 in
For Maximum Drum Diameter24 in
Dump Height72 in
Item Drum Dumper
For Use With 30 and 55 gal Drums
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Finish Powder Coated
Dump Angle 45 Degrees
Voltage 115
Number of Drums 1
Construction Steel
Type Stationary
Rotation 135 Degrees
Drum Capacity 55 gal, 30
Motor HP 3/4 hp
Total Raise Time 42 sec
Clearance Between Legs 28 1/2 in
Lowest Position of Jaws 27 in
Max. Lift 157 1/4 in
Drum Rotation 135 Degrees
Rotation Angle 135 Degrees
Load Capacity 1,500 lb
Standards OSHA
Phase Single
Product Type Drum Dumper
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Body Material Steel
Drum Securing Mechanism Clamp
Power Source Hydraulic
Raise Time 42 in/sec
Electrical Connection Power Cord
Operating Voltage 115V AC
Leg Clearance 28 1/2 in
Frequency 60 Hz
Chute Material Steel
Maximum Motor Horsepower 3/4 hp
Vertical Lift 157.25 in
For Drum Material Fiber, Plastic, Metal
Includes Battery Batteries Not Included
Weight Capacity 1,500 lb
Motor Type AC Motor
Portability Stationary
Caster Type (2) Rigid; (2) Swivel
For Container Type Drums
Housing Finish Powder Coated
Assembly Fully Assembled
Housing Color Blue, Yellow
For Drum Capacity 30 gal, 55 gal
