category:
Storage & Workspace
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_HDDxxxxMANUALxx72614d.pdf
manufacturer:
Vestil
mpn:
HDD-72-7-P
subcategory:
Drums & Liquid Storage
type:
Drums & Accessories
Data Sheet Product Description

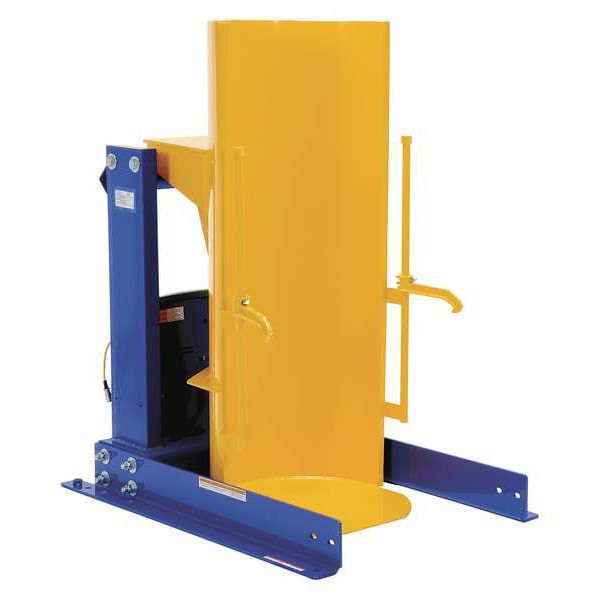

Vestil - HDD-72-7-P
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 72 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 92 in, Overall Height 96 in, Overall Width 36 in, Portability Casters
Additional Information
Overall Width36 in
Overall Length92 in
Rotated Height157 1/2 in
Dia.24 in
Dispensing Height72 in
Overall Height96 in
Level Height96 in
Dump Height72 in
For Maximum Drum Diameter24 in
Rotation Height157.5 in
Power Cord Length8 ft
Overall Depth92 in
Manufacturer Warranty Length1 yr Limited
Item Drum Dumper
For Use With 30 and 55 gal Drums
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Rotation Angle 135 Degrees
Total Raise Time 34 sec
Voltage 115
Motor HP 3/4 hp
Type Portable
Finish Powder Coated
Dump Angle 45 Degrees
Clearance Between Legs 28 1/2 in
Load Capacity 750 lb
Casters 8 in x 3 in Phenolic
Wheels 5 in x 2 in Polyurethane
Rotation 135 Degrees
Number of Drums 1
Lowest Position of Jaws 27 in
Construction Steel
Drum Rotation 135 Degrees
Max. Lift 157 1/2 in
Drum Capacity 55 gal, 30
Standards OSHA
Phase Single
Product Type Drum Dumper
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Caster Type (2) Rigid; (2) Swivel
Motor Type AC Motor
Wheel Material Polyurethane
Wheel Type Caster
For Drum Material Fiber, Plastic, Metal
Vertical Lift 157.5 in
Assembly Fully Assembled
Includes Battery Batteries Not Included
Operating Voltage 115V AC
Housing Color Blue, Yellow
Body Material Steel
For Container Type Drums
Chute Material Steel
Electrical Connection Power Cord
Housing Finish Powder Coated
For Drum Capacity 30 gal, 55 gal
Portability Casters
Frequency 60 Hz
Drum Securing Mechanism Clamp
Leg Clearance 28 1/2 in
Maximum Motor Horsepower 3/4 hp
Power Source Hydraulic
Raise Time 34 in/sec
Weight Capacity 750 lb
