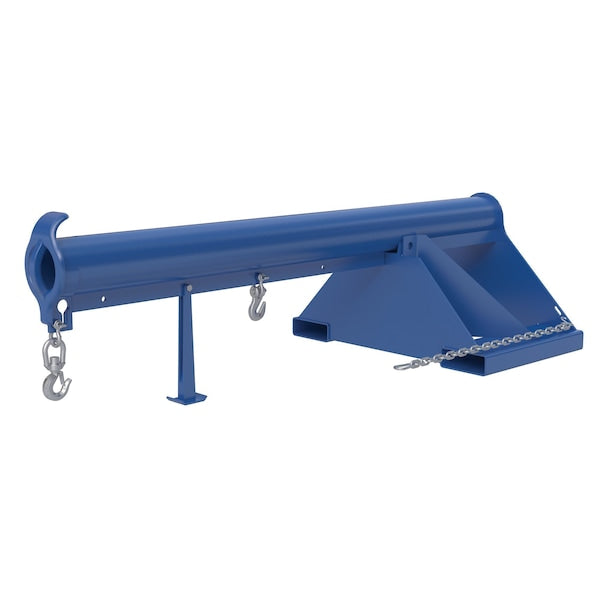

Vestil - LM-1NT-4-36
Non-Telescoping Lift Boom,4K,36" Fork
Additional Information
Overall Height24-13/16 in.
Overall Length81-1/2 in.
Overall Width44 in.
Platform Length81.5"
Height25 in
Width44
Size81-1/2" x 44" x 24-13/16"
Fork Thickness2.5 in
Usable Fork Pocket Width7-1/2 in.
Usable Fork Pocket Height2-1/2 in.
Fork Width7.5 in
Depth81-1/2 in.
Length82 in
Material Steel
Color Blue
Load Capacity 4,000 lb.
Item Non-Telescoping Lift Boom,4K,36" Fork
Assembled Yes
Includes (1) Non-Telescoping Lift Boom; safety restraint; two (2) lifting hooks
For Use With Material Handling
Standards OSHA: 1910.178(a)(4)
Weight 375
Features Unique design converts fork trucks into overhead lifting cranes; Fork pockets with safety strap attach & secure boom to fork truck; Robotically welded construction provides precision and durability; Operations & capacity sticker provide user instructions and safety
Application Unique performance, convenience and safety features are built into every Lift Master Boom.
Power Source Fork Truck
CategoryMaterial Handling
Country of originUSA
ManufacturerVestil
MpnLM-1NT-4-36
SubcategoryCarts / Trucks / & Dollies
TypeLifting Trucks
