category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_LMxxxxMANUALxx946603.pdf
manufacturer:
Vestil
mpn:
LM-OBT-8-24
subcategory:
Carts / Trucks / & Dollies
type:
Lifting Trucks
Data Sheet Product Description

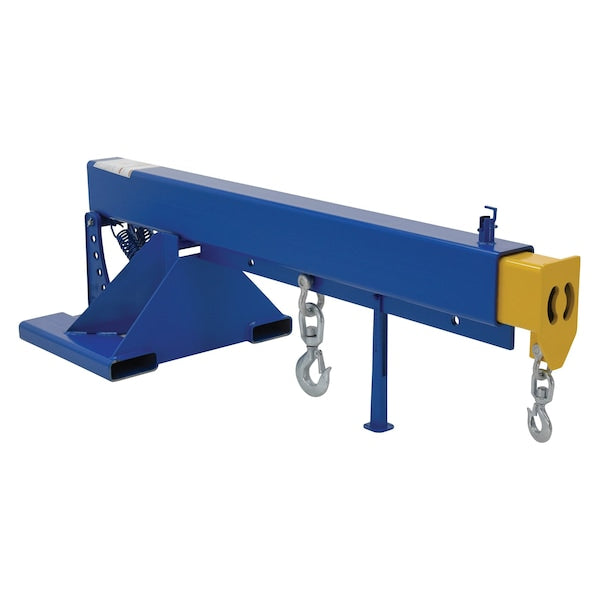

Vestil - LM-OBT-8-24
Forklift Boom, Horizontal Reach - Minimum 4 1/4 ft, Load Capacity - Maximum 8,000 lb, Number of Fork Pockets 2, Horizontal Reach - Maximum 7 1/8 ft, Load Capacity - Minimum 2,200 lb, Boom Style Telescoping, Overall Height 28 7/8 in, Horizontal Reach Increments 144 in, Overall Width 32 in, Hook Type Double Swivel Hook, Single Swivel Hook, Fork Pocket Height 7 1/4 in, Fork Pocket Width 2 1/4 in, Hook Opening Size 1 5/8 in, Fork Pocket Spacing 24 in, Mounting Type Fork, Color Blue, Material Steel
Additional Information
Overall Height28.875
Overall Length85.25
Overall Width32
Platform Length85.25"
Storage Height28 7/8 in
Width32
Size85.25 x 32 x 28.875
Fork Thickness2.25 in
Height29 in
Fork Width7.25 in
Length86 in
Fork Pocket Height7 1/4 in
Fork Pocket Width2 1/4 in
Hook Opening Size1 5/8 in
Material Steel
Color Blue
Load Capacity 8000 lb
Item Boom
Assembled Yes
Includes (1) Orbit Telescoping List Boom; safety restraint; two (2) lifting hooks
For Use With Fork pockets with safety strap attach & secure boom to fork truck
Features Unique design converts fork trucks into overhead lifting cranes. Fork pockets with safety strap attach & secure boom to fork truck. Robotically welded construction provides precision and durability. Operations & capacity sticker provide user instructions and safety
Weight 622
Application Unique performance, convenience, and safety features are built into every lift master boom
Load Capacity @ 3 ft 8,000 lb
Boom Style Telescoping
Load Capacity @ 8 ft 4,000 lb
Horizontal Reach - Minimum 4 1/4 ft
Number of Fork Pockets 2
Fork Pocket Spacing 24 in
Load Capacity @ 9 ft 3,500 lb
Load Capacity @ 4 ft 6,650 lb
Load Capacity @ 11 ft 2,600 lb
Load Capacity @ 7 ft 4,650 lb
Hook Type Double Swivel Hook, Single Swivel Hook
Load Capacity @ 12 ft 2,200 lb
Horizontal Reach - Maximum 7 1/8 ft
Load Capacity - Maximum 8,000 lb
Load Capacity @ 10 ft 3,000 lb
Load Capacity - Minimum 2,200 lb
Load Capacity @ 6 ft 5,300 lb
Load Capacity @ 5 ft 6,000 lb
Lifting Angle - Maximum 37 Degrees
Horizontal Reach Increments 144 in
