category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_PExxxxMANUALxx04e049.pdf
manufacturer:
Vestil
mpn:
PE-2566
subcategory:
Dock & Warehouse Equipment
type:
Ramps
Data Sheet Product Description

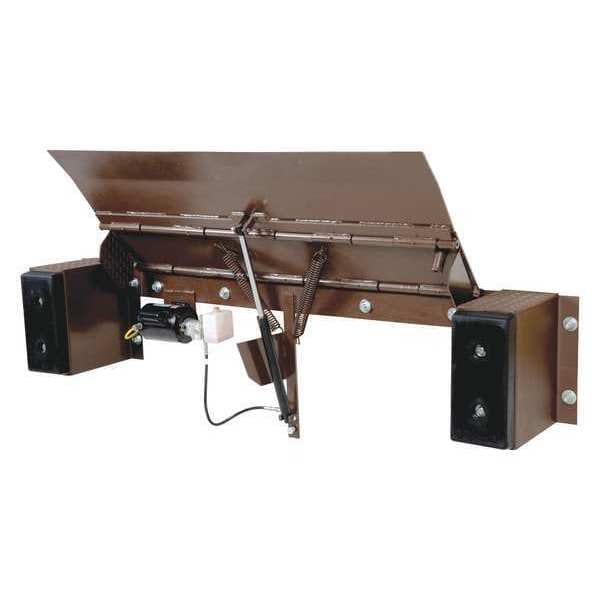

Vestil - PE-2566
Edge of Dock Leveler, Dock Leveler Lift Mechanism Electric Hydraulic, 25,000 lb Load Capacity, Service Height Range 5 in Above or Below Dock, Overall Width 93 in, Usable Width 66 in, Bumper Size 2 in x 8 in x 18 in, Motor HP 3/4 hp, Voltage 115 V, Includes Control Box, Cylinder, Hydraulic Lines, Motor, Oil, Pump, Open Depth 29 in, Closed Depth 17 1/2 in
Additional Information
Overall Width93 in
Usable Width66 in
Service Height Range5 in Above or Below Dock
Bumper Size2 in x 8 in x 18 in
Open Depth29 in
Closed Depth17 1/2 in
Opening Depth29 in
Bumper Depth2 in
Bumper Width8 in
Service Height5 in
Bumper Height18 in
Dock Leveler ItemEdge of Dock Leveler
Dock Leveler Lift MechanismElectric Hydraulic
Load Capacity25,000 lb
Voltage115 V
Lift MechanismElectric Hydraulic
Motor HP3/4 hp
IncludesUnit comes complete with motor, pump, control box, cylinder, lines and oil
ItemEdge of Dock Leveler
Bumper MaterialRubber
Nameplate Voltage115V
Horsepower3/4 hp
Load Capacity - Maximum25,000 lb
